Kioti Tractor Division DAEDONG - USA, INC

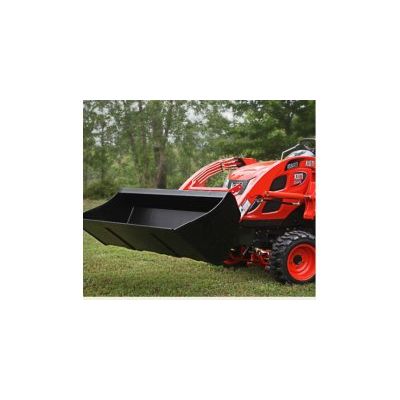

Kioti - Model KL2610 - Front End Loaders
Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.
Most popular related searches
- Arched low profile maximizes operator`s visibility and is well matched with unique hood style.
- Entire loader (except mounting) is quick-detached from tractor.
- A built-in parking stand on the front end loader provides quick and easy connection.
- Parking stand comes standard.
- Mid-mount style frame for engine accessibility.
- Color complements KIOTI tractor.
- Maximum Lift Height To Pivot Pin 98.4" (2,500 mm)
- Clearance w/ Attachment Level 88" (2,234 mm)
- Clearance w/ Attachment Dumped (45 Degrees) 74" (1,864 mm)
- Reach At Maximum Lift Height 11.3" (286 mm)
- Maximum Dump Angle 48°
- Reach w/ Attachment on Ground 63.4" (1,610 mm)
- Maximum Rollback Angle 28.5°
- Digging Depth Below Grade 4.8" (112 mm)
- Overall Height in Carry Position 53.1" (1,349 mm)
- Depth of Attachment (to back of inner shell) 19.1" (485 mm)
- Height of Attachment 19.7" (501 mm)
- Length of Attachment (to pivot pin) 24.3" (616 mm)
- Lift Capacity to Maximum Height at Bucket Pivot Pin 1,252 lbs. (568 kg)
- Breakout Force at Bucket Pivot Pin 2,110 lbs. (957 kg)
- Relief Valve Setting (Loader Control Valve) 2,567 psi
- Rated Flow (Tractor Hydraulic System) 7.1 gpm
- Bucket Size (QA) 60" / 66"
- Rated bucket capacity 0.2㎥ (60") / 0.21 ㎥ (66")
- Heaped bucket capacity 0.27 ㎥ (60") / 0.29 ㎥ (66")
- Weight (with Bucket) 915-928 lbs. (415-421 kg)
- Raise Boom (2,600 rpm) 4.8 seconds
- Lower Boom (2,600 rpm) 3.4 seconds
- Dump Bucket (2,600 rpm) 3.3 seconds
- Retract Bucket (2,600 rpm) 2.7 seconds
