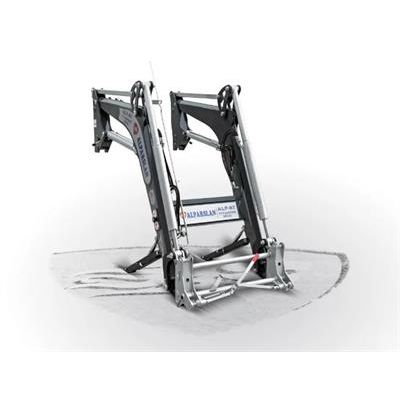

Alparslan - Model ALP-07 Titanium Series - Front Loader

FromAlparslan Agriculture Inc.

SHARE

Titanium Series Tractor Front Loader, from 65 to 130 HP (horsepower) such as New Holland, Case, Tumosan, John Deere, Massey Fergusan, Mc Cormick, Landini, Fendt, Erkunt, Lomborghini, Deutz - Fahr, Same, Stery, Class, Valtra It is a front loader bucket series that can be installed on agricultural type agricultural tractors.

Most popular related searches

front loader bucket

agriculture tractor

tractor attachment

agriculture product

agriculture production

FRONT LOADER

It has been produced with different attachment design features considering the use of front loader mounted on agricultural tractors of factories, construction companies, municipalities, etc., especially other livestock enterprises. Attachment options can be found on our website.
ASSEMBLY

Thanks to the special connection angle design of the subframes, the ideal distribution of the load is provided in the main body of the tractor and no part is removed and the steering angles are not disturbed. The attachment balancing system is designed as a lift / hydraulics on the Titanium Series front loader.
CONTROL LEVER (JOYSTICK)

The single control handle is completely ergonomic and the small size allows the operator to easily and precisely control all functions of the front loader.
MOVING ATTACHMENT HYDRAULIC VALVE

The electro-hydraulic installation is ready to use to provide additional hydraulic movement when using attachments.
QUICK ATTACHMENT REMOVAL - FITTING ADAPTER

It is designed to allow quick and easy replacement of attachments when work needs to be changed.
BUSHINGS AND PINS

The cylindrical bushings used at all joints are made of bronze materials that do not wear even under extreme loads. All the pins used in the joint points are made of steel material, galvanized coated and non-corrosive, resistant to high strength.

EXPLANATION: DETAIL
Maximum Lifting Height (A): 3730 mm
Maximum Lifting Height (Attachment with Ground): 3560 mm
Unloading Height (B): 2850 mm
Carrying Angle with Maximum Height (A): 45 degrees
Discharge Angle at Maximum Height (B): 55 degrees
Collecting Angle at Minimum Height: 45 degrees
Attachment Tear-Off Capacity: 1900 kg
Maximum Height Carrying Capacity: 1800 kg
Attachment Balancing System: Mechanical
Anti-Shock System: Optional
Joystick Control System: Standard
Movable Attachment Hydraulic Valve: Standard
Quick Coupling Disassembly: Standard
Front Loader Weight: 610 kg
Required Tractor Horsepower (HP) Range: 65-130 HP
