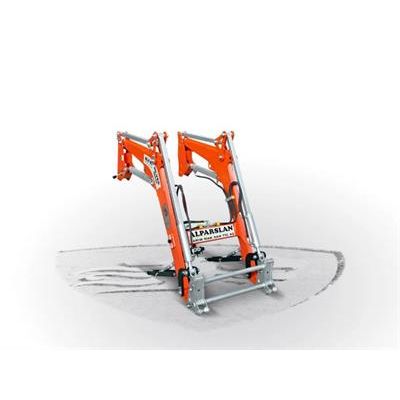

Alparslan - Model ALP-07 Silver Series - Front Loader
Silver Series Tractor Front Loader, 25 to 45 HP (horsepower) such as New Holland, Case, Tumosan, John Deere, Massey Fergusan, Mc Cormick, Landini, Fendt, Erkunt, Lomborghini, Deutz - Fahr, Same, Stery, Class, Valtra It is a front loader bucket series that can be installed on field type agricultural tractors.
FRONT LOADER
It has been produced with different attachment design features considering the use of front loader mounted on agricultural tractors of factories, construction companies, municipalities, etc., especially other livestock enterprises. Attachment options can be found on our website.
ASSEMBLY
Thanks to the special connection angle design of the subframes, the ideal distribution of the load is provided in the main body of the tractor and no part is removed and the steering angles are not disturbed.
BUSHINGS AND PINS
The cylindrical bushings used at all joints are made of bronze materials that do not wear even under extreme loads. All the pins used in the joint points are made of steel material, galvanized coated and non-corrosive, resistant to high strength.
- EXPLANATION: DETAIL
- Maximum Lifting Height (A): 2200 mm
- Maximum Lifting Height (Attachment with Ground): 2100 mm
- Unloading Height (B): 1800 mm
- Carrying Angle with Maximum Height (A): 45 degrees
- Discharge Angle at Maximum Height (B): 55 degrees
- Collecting Angle at Minimum Height: 45 degrees
- Attachment Tear-Off Capacity: 750 kg
- Maximum Height Carrying Capacity: 775 kg
- Attachment Balancing System: Mechanical
- Anti-Shock System: Optional
- Joystick Control System: Standard
- Movable Attachment Hydraulic Valve: Optional
- Quick Coupling Disassembly: Optional
- Front Loader Weight: 200 kg
- Required Tractor Horsepower (HP) Range: 25-45 HP
