Lastec - Model XF100 - Front Mount Deck

SHARE

Lastec started the articulating mower industry and set the standard by which all articulating mowers are now measured. Following the contours of rolling terrain , these high quality, durable decks are designed specifically for John Deere F1145, 1400 and 1500 traction units.

Most popular related searches
front mount mower
cutting deck
mower unit
contour roll
tractor
mulching
mulch
commercial mower
turf damage
turf mower

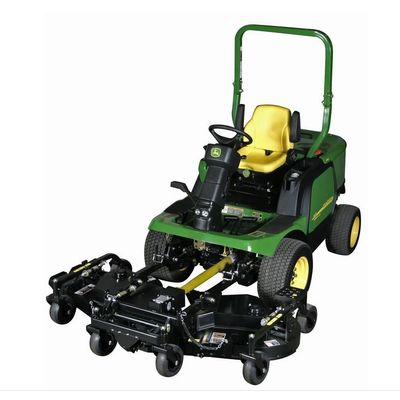

72" Front Mount Flex Deck for John Deere F1145, 1400 and 1500

  • 72" cutting width
  • Three 25" flex decks and up to 24° of total up/down motion
  • No-tool deck height adjustment from 1-1/2" to 4-3/4"
  • All Deck Wheels are Semi-Solid, to Eliminate Flat Tires
  • All decks are constructed from 7ga. 3/16” plate with 3/8” x 1/2” solid steel bar leading edges

The XF100 front mount mower deck includes three independently flexing decks with up to 24° of total up/down motion for superior cut quality in even the most challenging contours and valleys. In addition, Lastec’s patented belt-driven decks require minimal maintenance.

Perfect the Art of Mowing today with the XF100 front mount mower deck that minimizes investment and maintenance while maximizing cut quality, productivity, and performance.

Premium Cut Quality
Lastec flexing decks provide a premium quality of cut throughout the entire width of cutfrom wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

Tractor Requirements:
Mount Kits currently available for:

  • John Deere F1145, 1400 and 1500 Series
  • Deck Height Range: 1” to 4 3/4” (25.4 mm - 120.65 mm)
  • Deck Configuration: Three 25” (635 mm) 4” (101.6 mm) deep, fully articulating
  • Warranty: 2 year parts / 1 year labor

Dimensions

  • Weight: 576 lbs (261.2 kg)
  • Length 85" (2.16m)
  • Width (mowing) 87" (2.21m)
  • Width (transport) 72" (182.88cm)

Cutting Deck System

  • Cutting Width: 72” (182.88 cm)
  • Blades (3) 25" Blades
  • Deck Segments 3
  • Height of Cut Range 1.50"-4.75"
  • Height Adjustment No tools Required
  • Acres Per Hour 5.13 (assumes 10% overlap, no stops, and average speed of 8mph)
  • Deck Castor Wheels 9" (228.6mm) gauge Semi-Solid Tires
  • Deck Thickness 3/16 7ga.
  • Deck Leading Edge 1/2"x1/4"
  • Blade Length 25" (63.5cm)
  • Articulation p/m 12 degrees
  • Height of Cut Change- Timing 5 min.
  • Height of Cut Change- Tools required None
  • Height of Cut Change- Person`s Required 1
  • Min. Height of Cut 1.50" (38.1 mm)
  • Max Height of Cut 4.75 (120.65 mm)
  • # of Decks 3
  • Number of Grass chutes 1
  • Discharge Capability Side, Mulching
  • Bearing/Spindles 3
  • Pulleys(Cast or Split) Cast Steel
  • Rows of fixed wheels 1
  • Hydraulic Cylinders 0
  • Hydraulic Connections 0
  • Hydraulic Manifold 0
  • Pulleys 8
  • Blades 3 CW
  • Number of Belts 4
  • Size of Belts 2
  • 3" Back-Bend Idlers 4
  • 1/4 Turn Belt Twists 0
  • Spring Loaded Idlers 4
  • PTO`s 1
  • Carrier Bearings 0
  • Grease Points 20
  • Height When Raised 15" (381mm)
