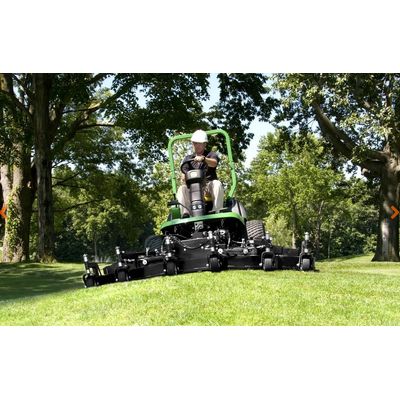

Lastec - Model XF200 - Front Mount Deck Mower

SHARE

Lastec started the articulating mower industry and set the standard by which all articulating mowers are now measured. Following the contours of rolling terrain , these high quality, durable decks are designed specifically for John Deere 1565/1570/1580 traction units.

Most popular related searches
front mount mower
mower unit
cutting deck
contour roll
commercial mower
tractor
turf damage
turf mower
mulching
mulch

100" Front Mount Flex Deck for John Deere 1565, 1570, and 1580

 (not compatible with cab option)

  • 100" cutting width
  • Five 21" flex decks and up to 24° of total up/down motion
  • Quick-lift deck to 78" wide for easy transport, cleaning, and storage
  • No-tool deck height adjustment from 1-1/2" to 4-3/4"
  • All Deck Wheels are Semi-Solid, to Eliminate Flat Tires
  • All decks are constructed from 7ga. 3/16” plate with 3/8” x 1/2” solid steel bar leading edges

The XF200 front mount mower deck includes five independently flexing decks with up to 24° of total up/down motion for superior cut quality in even the most challenging contours and valleys. In addition, Lastec’s patented belt-driven decks require minimal maintenance.

Premium Cut Quality

Lastec flexing decks provide a premium quality of cut throughout the entire width of cutfrom wing to wing not found anywhere else in the industry. Lastec individual flexing decks cut areas that normally require hand trimming, provide a lower cut without scalping, mow through trenches and valleys in a single pass, and approach contours from any angle without scalping, missing grass, or damaging turf.

Every Lastec mower features three, five, or seven 21” or 25” independently flexing decks that include up to 24° of total up/down motion for the premium cut quality of several small push mowers in even the most challenging contours and valleys. In addition, Lastec’s center decks include a pivot in the center capable of up to 3° of up/down motion.

  • Tractor Requirements:
  • 1565, 1570,1580 John Deere
  • Transport Width:  78” (198.12 cm)
  • Deck Height Range: 1” to 4 3/4” (25.4 mm - 120.65 mm)
  • Deck Configuration:  Five 21” (533.4 mm) 5 1/2” (139.7 mm) deep, fully articulating
  • Warranty: 2 year parts / 1 year labor

Dimensions

  • Weight:  1,065lbs (483 kg)
  • Length 85" (2.16m)
  • Width (mowing) 87" (2.21m)
  • Width (transport) 81" (2.06m)

Cutting Deck System

  • Cutting Width: 100” (254 cm)
  • Cut Width 100” (182.88cm)
  • Blades (5) 21" Blades
  • Deck Segments 5
  • Height of Cut Range 1.50"-4.75"
  • Height Adjustment No tools Required
  • Acres Per Hour 7.27 (assumes 10% overlap, no stops, and average speed of 8mph)
  • Transport Lift Type Hydraulic
  • Deck Castor Wheels 9" (228.6mm) gauge Semi-Solid Tires
  • Transport Lift Type Hydraulic
  • Deck Castor Wheels 10 (No Flats)
  • Deck Thickness 3/16 7ga.
  • Deck Leading Edge 1/2"x1/4"
  • Blade Length 21" (53.3cm)
  • Articulation p/m 12 degrees
  • Height of Cut Change- Timing 5 min.
  • Height of Cut Change- Tools required None
  • Height of Cut Change- Person`s Required 1Min.
  • Height of Cut1.50" (38.1 mm)
  • Max Height of Cut 4.75 (120.65 mm)
  • Weight 1,065lbs (483kg)
  • # of Decks 5
  • Number of Grass chutes 1
  • Discharge Capability Side, Rear, Mulch
  • Bearing/Spindles 5
  • Pulleys(Cast or Split) Cast Steel
  • Rows of fixed wheels 1
  • Hydraulic Cylinders 2
  • Hydraulic Connections 6
  • Hydraulic Manifold 0
  • Pulleys 12
  • Blades 5 CW
  • Number of Belts 6
  • Size of Belts 2
  • 3" Back-Bend Idlers 4
  • 1/4 Turn Belt Twists 0
  • Spring Loaded Idlers 4
  • PTO`s 1
  • Carrier Bearings 0
  • Grease Points 18
  • Height When Raised 15" (381mm)
