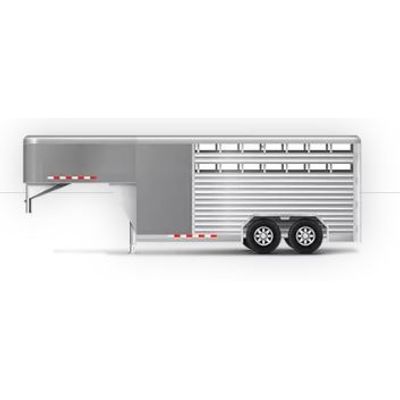

Cimarron Lonestar - Model LS16G-FTR -Front Tack Livestock Trailer

Standard Features:

• 7′-1″ tall x 6′-10″ wide with 8′-2″ gooseneck or 3′ tongue length on bumper pull.
• All extruded aluminum construction.
• Fully insulated roof, 1/2″ thick fiberglass reinforced structural panel with R3 thermal value.
• V-Truss extruded aluminum interlocking floor with cross members at 4″ centers and traction grooves.
• GN Tapered nose or BH V-nose with 18″ radius corners for efficient aerodynamics.
• Solid extruded aluminum interlocking side walls with two or three air openings per side, and track for plexiglass panels.
• Full length running boards along each side .050 white aluminum sheets on gooseneck and front of bumper hitch for a smooth seamless appearance.
• Bolt on aluminum fenders and Rubber dock bumper.
• Front tack room with dome light, floor mat & hooks

UNDERCARRIAGE

• Dexter Rubber torsion axles with ultralube hubs & self-adjusting electric brakes.

COUPLER & JACKS

• 2 5/16″ coupler & safety chains with hooks.
• Spring-Loaded drop-leg GN jack with removable handle/lug wrench or Top-wind BH jack with removable foot.

Wheels

• Radial tires on aluminum spoke wheels, balanced and nitrogen filled.
• Spare tire.

WINDOWS

• 15” x 22” in Tack Room Door

HARDWARE

• Sliding full swing rear gate with heavy duty cam-lock latch.
• Solid center gate with slam latch (standard models 24′ & over have 2 center gates).
• Side access gate with pressure latch.
• Calf gate at gooseneck wall, full width fold down type Tie rail, full length of interior on each side.

LIGHTING

• All LED Lights
• DOT required lighting (stop, turn, tag, & clearance)
• LED dome lights on separate circuit (one per compartment)
