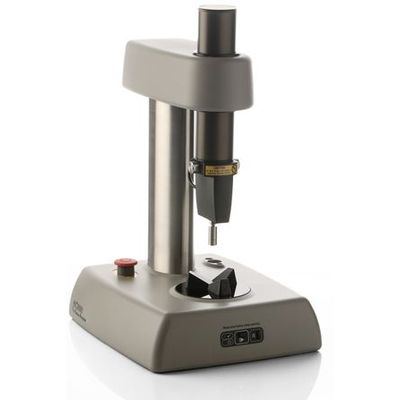

Umweltanalytische-Produkte - Model Typ GS-15 -Fruit Texture Analyzer (FTA)
Fruit Texture Analyzer FTA Typ GS-15 with following features: Measurement range: 50..15000g, Non-repeatability: 0,5%, Speed of probe: 1..40 mm/sec, Maximum fruit-size: 120mm, Weight: 9kg, comes with necessary software for Windows XP or higher, possible to use with ART-Soft-Database or Fruitsoft 7.0.
Most popular related searches
fruit texture analyzer
fruit texture
fruit size measurement
fruit firmness monitoring
fruit sorting
fruit measurement
electronic fruit sorting
fruit analyzer
fruit firmness
kiwi fruit
The FTA ( = Fruit Texture Analyser) has the following features:
- Tests your apples, pears, plums, peaches, nectarines and kiwi fruit automatically for firmness and does advan-ced texture analysis.
- It’s quick, easy to use and very reliable.
- Accurate probe speed
- Accurate test distance (depth)
- Can also measure fruit size.
- RS-232 interface for PC-connection, Windows-Software for evaluation
- Software Development Kit available for your own Software application.
- Runs with ART-Soft-Database!
- The machine is maintenance free, requiring only regular cleaning.

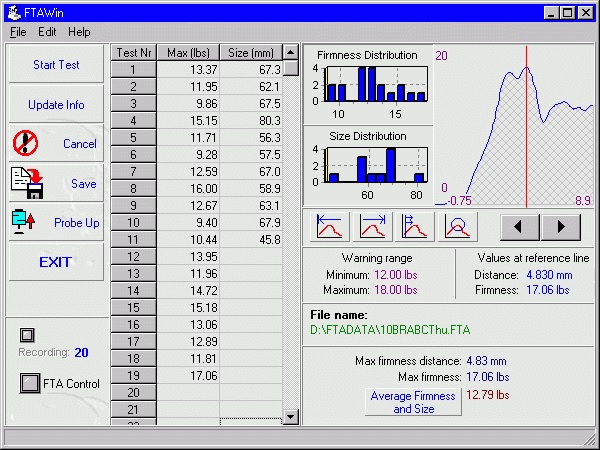

Measurement/Evaluation

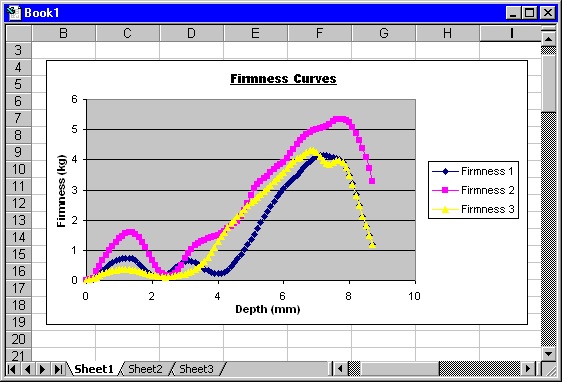

Firmness graph
System requirements:
- CPU 486DX or higher
- 8MB RAM or more
- Windows 95/98/NT
- SVGA (800x600dpi)
- CD-ROM drive
- Serial port (DB9)

- LCD/Keypad, which allows you to work without a PC (Art.Nr. 26700a)

- EFM (electronic fruit size measurement) to measure and record fruit sizes. (Art.Nr. 26700b)

- Balance to connect directly to FTA-System. (ArtNr. 26700c)
