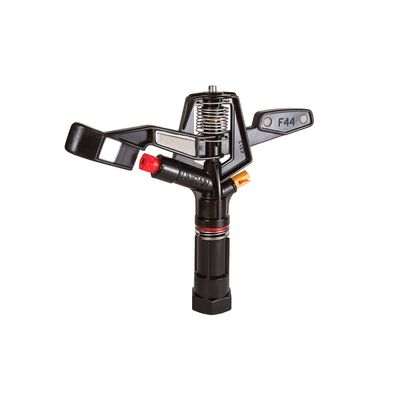

Aspersor - Model F44 - Full Circle Impact Sprinkler Low and Medium Flow Plastic
FromUnirain SA
For general agricultural use on movable or fixed solid sets. This model is very suitable where working conditions are specially hard for plastic sprinklers. Balanced and strong sprinkler; Its swing arm is made of a material different from the body and the bearing, which, along with the counterweights, provides homogeneous and smooth circular movement.
Most popular related searches
- Very strong sprinkler, reinforcing ribs on the body, a fibreglass added polyamide arm and bearings made of a mixture of acetal resins turning on the stainless steel pin.
- Sand-proof bearing set.
- Can be assembled with one or two nozzles. Sprinkler body adapted to two different model nozzle models: 3Q Bayonet & thread nozzle.
- This model allows using three different type of vane to achieve the desired coverage and spray balance according to the available system pressure.
- Full circle impact sprinkler.
- Male or female( F44F) ¾” base thread.
- Dual nozzle, main and secondary nozzle.
- 23º nozzle trajectory angle.
- Pressure range: 20-80 PSI.
- Nozzle range: 1/8”-7/32”.
- Acetal resin body and bearing. Polyamide fibreglass arm.
- Protective treatment against UV radiation.
- Fulcrum pin and springs made of stainless steel.
- Expanded fulcrum pin upper end diameter for a better fitting into the sprinkler body.
- Color-coded anti abrasive acetal resin nozzles carved in millimetres and inches for clear identification.
- Backturn lock between the sprinkler body and the compresion spring,
- Acetal resins bearing in arm.
