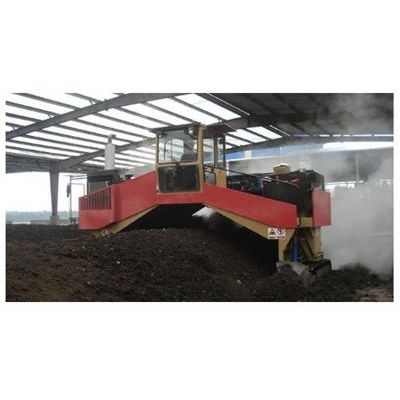

Full Hydraulic Crawler Compost Turner
Full Hydraulic crawler compost turner adopts hydraulic drive system as the driving source and the crawler as the running parts. From a technical point of view, the purpose of the crawler is using it`s meshing of the main driving wheel to transmit the driving or braking torque, produce the traction force or braking force by relying on the interaction with the ground. The total pressure of supporting wheel working on the crawlers below can increase contact area on the ground, and the decorative pattern on the crawler can increase the adhesion performance.
Full hydraulic compost turner is a state-of-the-art compost machine for sale in the world, it is sturdy and powerful with advanced technology. What is more, it features with big capacity and powerful turning. With features of relying on the crawler walking, double roller hydraulic lifting regulation, high automation level, simple operation, this compost turner is so widely used for big farmers in Europe and USA. It is the professional turning equipment for oxygen fermenting organic materials. It is widely used for large working capacity with a minimum investment in mechanical linkage.
Correct Application of Hydraulic Crawler Compost Machine
When turning organic materials, the vertical of the composting piles are triangular or trapezoidal. When working, safeguard the operator by wearing protecting thing according to current environment, especially in enclosed area. Other people should far away from the working area.
Keep the working track none of amounts of materials; pay more attention to the pointed materials on the crawlers, once found, clear it right now.
Rise the roller properly when difficulties in walking across the materials, and lower it once it is normal. To protect compost turner, the roller must be risen before starting to walk across the uneven ground. Customers in different areas should change or adjust diesel oil according to different climates.
Different Modes of Hydraulic Crawlers Compost Turner

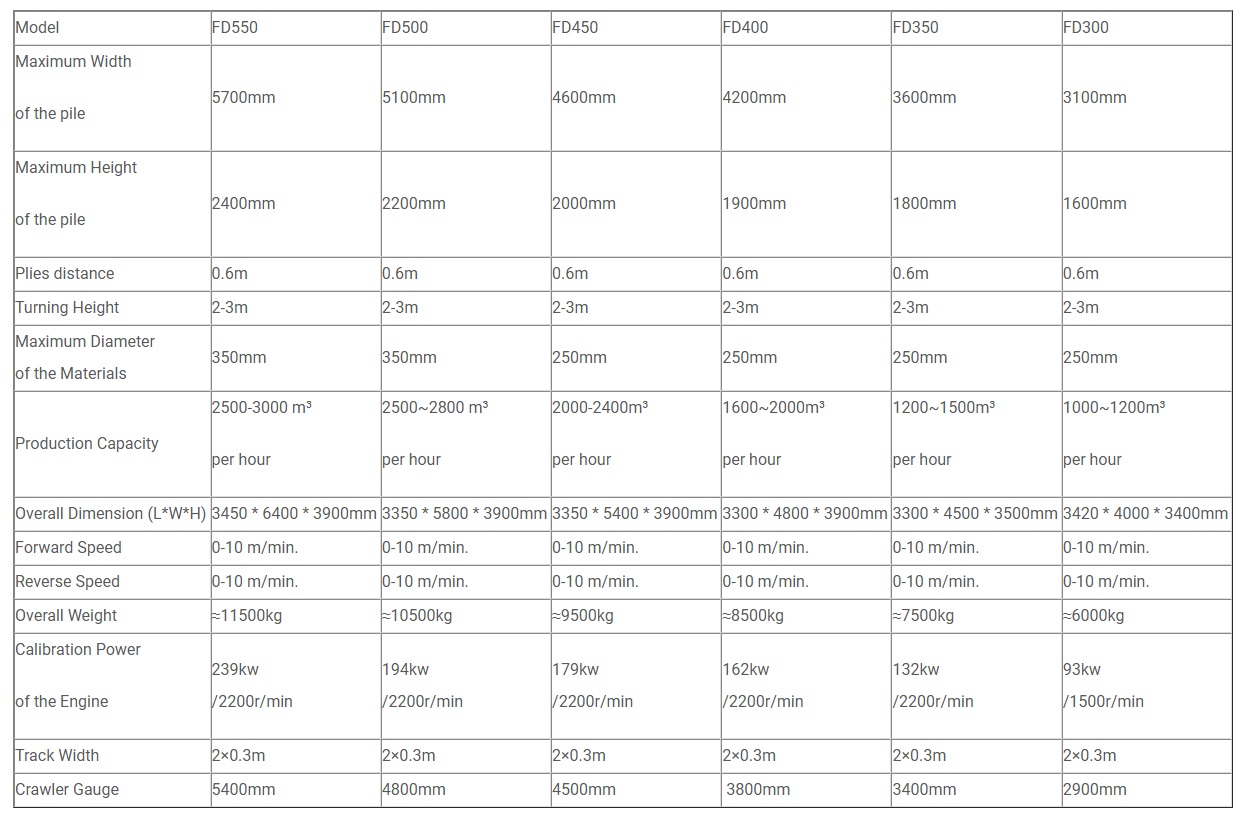

It is divided into 6 models-FD550, FD500, FD450, FD400, FD350, FD300-in accordance with the production capacity.
FD550 compost machine can handle 2500-3000 m3 materials per hour with formed compost piles` maximum width of 5.7 m and maximum height of 2.4 m. The new-formed triangular long-stick compost pile can maximize the efficient using the workplace. To change the height of the compost piles during turning and lifting, it can correspondingly adjust the the height of the whole frame. This is really convenient for operator.
Model FD 450 can handle 2000-24000 m3 compost piles per hour with cross-sectional area of 4.8m: and the maximum height of 2.1 m and the maximum height of 1.2 m.
