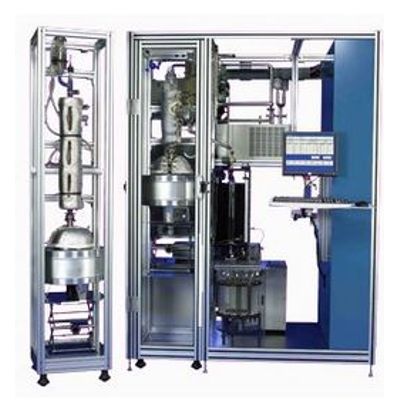

B-R-Instrument - Model ASTM D2892 D5236 - Fully Automatic Fractional Crude Oil Distillation System

• Fully Automatic
• Supports one, two or more distillation columns
• Modular design for quick switch of distillation columns
• Supports boiling flask sizes from 1 to 100 L
• Auto cold trap included
• UPS Included
• Remove fractions at any time
• Turnkey Operation

Easy to Use: PC control automates D2892 and D5236 crude oil distillations from beginning to end. New and experienced operators will find this system simple to use. The software steps you through D2892 and D5236 distillations.

Easy to understand software and easy access to all the distillation components makes performing crude oil distillation as simple as possible

Automatic Control:

• Fraction Collector
• Vacuum Control
• Condenser Temperature
• Reflux Ratio
• AET Temperature Calculation
• Distillation Column Heated Jacket Control
• Recording of Distillation Data
• Distillation Rate Control
• Ending of Distillation and Cool Down
• Printing of Report and Distillation Curve

Boiling Flask/Heating Mantle:

• Stirring Heating Mantle
• Heated Mantle Top
• Stainless Steel Boiling Flask (optional glass flasks available)
• Quench Coil for Rapid Cooling of the Flask Contents
• PRT Temperature Probe to Monitor Boiling Flask Temperature
• Boiling Flask Sizes 1, 2, 3, 6, 12, 22, 30, 50, 100 liters (Other sizes available)

ASTM D2892 Distillation Column:

• According ASTM specifications
• Vertical viewing window for easy viewing
• Highly reflective vacuum jacket
• Heated Jacket to Prevent Heat Loss (Automatically Controlled)
• 15 Theoretical Plates (Other Efficiencies Available)

Other D2892 Distillation Columns:

We also offer distillation columns packed with mesh packing (Goodloe) and real plate distillation columns.

Intermediate Receiver/Volume Measurement

• Precision diameter (±0.01 mm)
• Automatic precision volume measurement (±0.1 ml)
• Programmable chamber temperature
• IR level follower eye

Fraction Collector

• 32 Fractions at Each Pressure Level
• Automatic Collection by Vapor Temperature
• Graduate Receivers

Circulating Bath

• Automatic control from PC
• Programmable
• -20 - 100°C
• Low liquid cut off
• Over temperature cut off

Vacuum Operation

• Automatic control
• Programmable

Vacuum Components

• 100-1 mmHg range standard (MKS)
• 1-0.1 mmHg range (MKS)
• Optional 760-100 mmHg range (MKS)
• Automatic control valve (MKS)
• Vacuum pump (Edwards)

Cold Trap

• Automatic cooler included

PC/Monitor

• Included with distillation unit
• Keyboard and monitor integrated into distillation system

Dimensions

• 245 cm x 92 cm x 168 cm (H x D x W)

Power

• 220 VAC, 50/60 Hz
