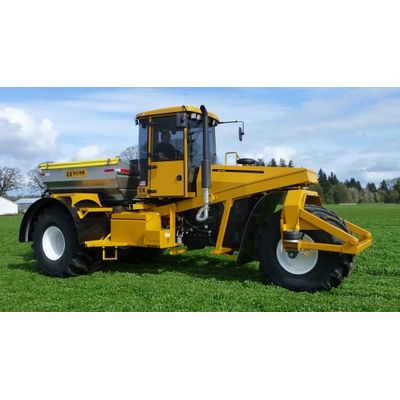

GK Machine - Model GK3W6 -3W6 Swamp Self-Propelled Spray Buggy

• A stronger frame, up to 200% stronger in key areas
• Additional lighting for night time visibility
• Increased fuel economy and quieter operation
• Improved front to rear weight balance and improved operator visibility
• Extensive use of aluminum and high strength steel to reduce overall weight
• Pressurized stainless steel wide cab with sound insulation, charcoal air filtration, climate control (A/C, Heat & Defrost), AM/FM stereo CD player and comprehensive digital display cluster.
• Improved access to maintenance locations

It’s powered with a Cummins Stage 5, 4.5 liter 173 HP, 4-cylinder engine which provides 590 feet-lbs. of torque. It’s driven by a JCB rear-end that has an outboard planetary, single speed with internal wet brakes. The Allison transmission helps make this a very durable and reliable machine. The main frame chassis features a wheel base of 16’ and offers 6,000 lbs. payload capacity. It has a dry weight of 11,700 lbs. and can be configured with tundra floatation tires or row crop tires.

This versatile machine spraying system is configured with a 600 gallon stainless steel tank with mechanical agitation and 60’ or 80’ stainless booms. The dry spreading system comes with a three ton stainless dry box with dual spinners.

• Tractor Weight (lbs.): 11,700 lbs.
• Dry Spreader set-up Weight (lbs.): 13,000 lbs.
• Spray Boom set-up Weight (lbs.): 15,400 lbs.
• Spray Tank (gallons) and Type: 600 gal. Stainless Steel
• Fuel Tank: 48 gallons, 12-14 hours of run time
• Engine: Cummins 173 HP (Stage 5)
• Transmission/Drive Speed: Allison, 0-25 MPH
• Suspension: Air (Front Fork)
• Cab: Stainless steel wide cab with charcoal filter and buddy seat
• Rear Axle: Outboard planetary
• Tires: 66x44x25 Tundra Floatation Tires
• Boom Height: 24 to 72 inches
• Crop Clearance: 22.5 inches
• Boom Length: 60' to 80'
• Pump (mfg, type): Centrifugal Hypro HM1
• Spray Control: Factory installed Raven control systems

• Tractor Weight (lbs.): 11,700 lbs.
• Dry Spreader set-up Weight (lbs.): 13,000 lbs.
• Spray Boom set-up Weight (lbs.): 15,400 lbs.
• Spray Tank (gallons) and Type: 600 gal. Stainless Steel
• Fuel Tank: 48 gallons, 12-14 hours of run time
• Engine: Cummins 173 HP (Stage 5)
• Transmission/Drive Speed: Allison, 0-25 MPH
• Suspension: Air (Front Fork)
• Cab: Stainless steel wide cab with charcoal filter and buddy seat
• Rear Axle: Outboard planetary
• Tires: 66x44x25 Tundra Floatation Tires
• Boom Height: 24 to 72 inches
• Crop Clearance: 22.5 inches
• Boom Length: 60' to 80'
• Pump (mfg, type): Centrifugal Hypro HM1
• Spray Control: Factory installed Raven control systems

Spray Boom

• 60 or 80 feet suspended boom with stainless steel wings
• Hydraulic or Mechanical Breakaway
• Up to 12 section product control
• Raven and TeeJet precision components

Dry Spreader

• 3 ton capacity dry box (80 cubic feet) with dual product chains and spinners
• 120 cubic feet extension with tarp kit
• Digital product scale

Tires

• Row crop 12.4R46 radial tires and wheels
• Tundra Tires, 66 x 44.00-25

Other Options

• GK Foam Marking System – 10 & 15 gallon
• GK Venturi Chemical Mixing Station
• GK Custom Sprayer Trailer
• Power Tank Fill
• Implement Hitch

• Engine: Cummins, 173 HP (Stage 5)
• Cab: Stainless steel wide cab with charcoal filter and buddy seat
• Spray Pump: Centrifugal Hypro HM1
• Spray Tank: 600 gal. Stainless Steel
• Transmission: Allison, 0-25 MPH
• Rear Axle: Outboard planetary
