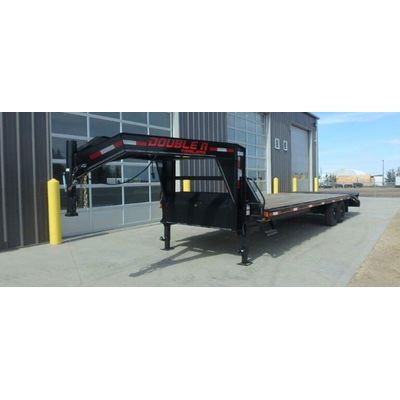

Double A Trailer - Model GHB148 - Gooseneck Highboy Trailer
The GHB148 Gooseneck Highboy Trailer is the entry-level gooseneck flatbed in our fleet. Designed for those who need a reliable and sturdy trailer without the extra frills, this model offers the essential features required for efficient and secure transport.
20'
Main Frame: 10@15lb
Carrying Capacity: 9,996 lbs
Tare Weight: 4,004 lbs
22'
Main Frame: 10@15lb
Carrying Capacity: 9,703 lbs
Tare Weight: 4,297 lbs
24'
Main Frame: 10@15lb
Carrying Capacity: 9,410 lbs
Tare Weight: 4,590 lbs
26'
Main Frame: 10@15lb
Carrying Capacity: 9,117 lbs
Tare Weight: 4,883 lbs
28'
Main Frame: 10@15lb
Carrying Capacity: 8,824 lbs
Tare Weight: 5,176 lbs
30'
Main Frame: 12@16lb
Carrying Capacity: 8,531 lbs
Tare Weight: 5,469 lbs
32'
Main Frame: 12@16lb
Carrying Capacity: 8,238 lbs
Tare Weight: 5,762 lbs
Axle Size: (2) 7,000 lb; Electric Brakes
Width: 102" Overall Width
Lace Rail: 5" Channel with Pockets & Rubrail
Coupler: GN 2 5/16" Adjustable Ball or Kingpin
Crossmembers: 3" Channel on 18" Centers
Tire & Rim: 235/80R16
Landing Gear: (2) 12,000 lb
Toolbox: None
Safety Chains: 5/16 Grade 70 Chain with Grab Hooks
Wiring: Arctic Wiring, Soldered & Enclosed in Conduit
Lights: Rubber Mounted LED (30' & up come with side signal)
Decking: 2" Treated Wood, fastened with 1/4" Torx Screws
Steps: Steps & Grab Handles on each side
Finish: Sandblasted and Painted with PPG Urethane Paint
