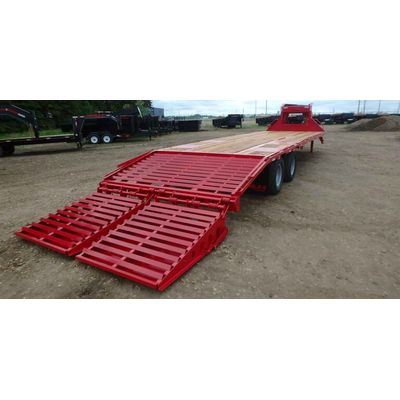

Double A Trailers - Model GHB208 - Gooseneck Highboy Trailer

20'

Main Frame: 12@16lb

Carrying Capacity: 15,005 lbs

Tare Weight: 4,995 lbs

22'

Main Frame: 12@16lb

Carrying Capacity: 14,732 lbs

Tare Weight: 5,268 lbs

24'

Main Frame: 12@16lb

Carrying Capacity: 14,459 lbs

Tare Weight: 5,541 lbs

26'

Main Frame: 12@16lb

Carrying Capacity: 14,186 lbs

Tare Weight: 5,814 lbs

28'

Main Frame: 12@16lb

Carrying Capacity: 13,913 lbs

Tare Weight: 6,087 lbs

30'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 13,490 lbs

Tare Weight: 6,510 lbs

32'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 13,217 lbs

Tare Weight: 6,783 lbs

34'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 12,944 lbs

Tare Weight: 7,056 lbs

36'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 12,671 lbs

Tare Weight: 7,329 lbs

38'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 12,398 lbs

Tare Weight: 7,602 lbs

40'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 12,125 lbs

Tare Weight: 7,875 lbs

Axle Size: (2) 10,000 lb; Electric Brakes with Oil Bath Hubs
Width: 102" Overall Width
Lace Rail: 5" Channel with Pockets & Rubrail
Coupler: GN 2 5/16" Adjustable Ball or Kingpin
Crossmembers: 3" Channel on 18" Centers
Tire & Rim: Dually 235/80R16
Landing Gear: (2) 12,000 lb
Toolbox: Lockable & Between Uprights
Safety Chains: 5/16 Grade 70 Chain with Grab Hooks
Wiring: Arctic Wiring, Soldered & Enclosed in Conduit
Lights: Rubber Mounted LED (30' & up come with side signal)
Decking: 2" Treated Wood, fastened with 1/4" Torx Screws
Steps: Steps & Grab Handles on each side
Finish: Sandblasted and Painted with PPG Urethane Paint
