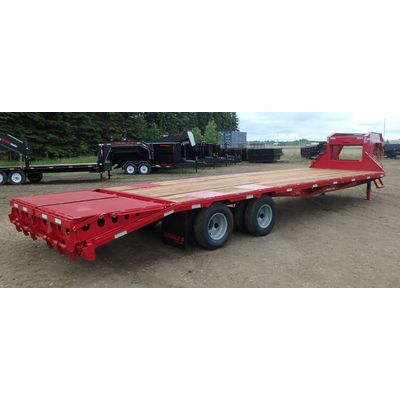

Double A Trailers - Model GHB248 - Gooseneck Highboy Trailer

20'

Main Frame: 12@16lb

Carrying Capacity: 19,215 lbs

Tare Weight: 7,785 lbs

22'

Main Frame: 12@16lb

Carrying Capacity: 18,942 lbs

Tare Weight: 8,058 lbs

24'

Main Frame: 12@16lb

Carrying Capacity: 18,669 lbs

Tare Weight: 8,331 lbs

26'

Main Frame: 12@16lb

Carrying Capacity: 18,396 lbs

Tare Weight: 8,604 lbs

28'

Main Frame: 12@16lb

Carrying Capacity: 18,123 lbs

Tare Weight: 8,877 lbs

30'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 19,700 lbs

Tare Weight: 11,300lbs

32'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 19,427 lbs

Tare Weight: 11,573 lbs

34'

Main Frame: 12@16lb with Torque Tube & Bridge

Carrying Capacity: 19,154 lbs

Tare Weight: 11,846 lbs

36'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 18,881 lbs

Tare Weight: 12,119 lbs

38'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 18,608 lbs

Tare Weight: 12,392 lbs

40'

Main Frame: 12@19lb with Torque Tube & Bridge

Carrying Capacity: 18,335 lbs

Tare Weight: 12,665 lbs

Axle Size: (3) 8,000 lb; Electric Brakes, 8 Stud
Width: 102" Overall Width
Lace Rail: 5" Channel with Pockets & Rubrail
Coupler: GN 2 5/16" Adjustable Ball or Kingpin
Crossmembers: 3" Channel on 18" Centers
Tire & Rim: 235/80R16
Landing Gear: (2) 12,000 lb
Toolbox: Lockable & Between Uprights
Safety Chains: 5/16 Grade 70 Chain with Grab Hooks
Wiring: Arctic Wiring, Soldered & Enclosed in Conduit
Lights: Rubber Mounted LED (30' & up come with side signal)
Decking: 2" Treated Wood, fastened with 1/4" Torx Screws
Steps: Steps & Grab Handles on each side
Finish: Sandblasted and Painted with PPG Urethane Paint
