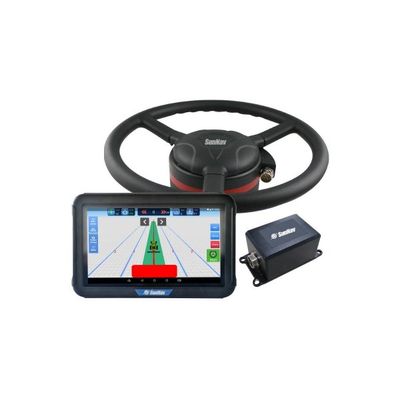

SunNav - Model AG300 -GPS Auto-Pilot System for Tractor
SunNav GPS auto pilot system AG300 can give you high performance auto pilot on non steer ready vehicles, including tractors sprayers, swathers and combines. Don’t have to change hydyraulic system. Can be switched in different vehicles. Operation accuracy. Cloud data storage. AB Line files can be shared in different vehicles. Double antenna receives signal to get high accuracy.
Most popular related searches
- PRODUCT TYPE : GNSS Auto-Steering System
- T200 CONSOLE : The SunNav T200 display is a portable,robust Android tablet. T200 is equipped with a built-in high-precision GNSS board which offers centimeter level accuracy.T200 also provides RS-232/485, USB 2.0, GPIO, CAN, CVBS signal interface to connect with other equipments, and supports WI-FI, 3G / 4G LTE wireless communication.
- GNSS ANTENNA : Double grading antenna can give high precision and heading.
- EMS2 MOTOR WHEEL : The EMS2 is an electric motor steering wheel. It is designed for easy-to-install operation. With high-torque, direct-drive electric motor, EMS2 can provide an accuracy up to 2.5cm RTK.
- ATTITUDE SENSOR : Easy to install, it can collect angle data in real time
- ANGLE SENSOR(OPTION) : Angle sensor is optional, it can provide higher accuracy and stability.
- BASE STATION:
- Channels: 352 Channels
- GPS: L1 C/A code,L1/L2 p code, L5
- BEIDOU: B1/B2/B3
- GLONASS: L1,L2
- Cold start: <50s Hot start: <15s
- Shock: Survives a 2-meter drop on to concrete
- Radio Module: Adjustable Full Band: 410-470 Mhz
- Size (L x W x H): 213mm x 119mm x 73mm
- Weight: 1.2kg (include Internal UHF)
- Humidity: 100% Non-Condensation
- Working Temperature: -40°C to +70°C
- Storage Temperature: -45°C to +80°C
- Interface: 2 Ports (Power & Data & Configuration)
- Waterproof and Dustproof: IP67, can float on the water
- Housing:
- Rugged and Light Weight
- High Performance Metal
- Post Processing Static:
- Horizontal: ±(2.5+1×10-6×D)mm
- Vertical: ± (5+1×10-6×D)mm
- RTK:
- Horizontal: ±(10 + 1×10-6×D)mm
- Vertical: ± (20 + 1×10-6×D)mm
