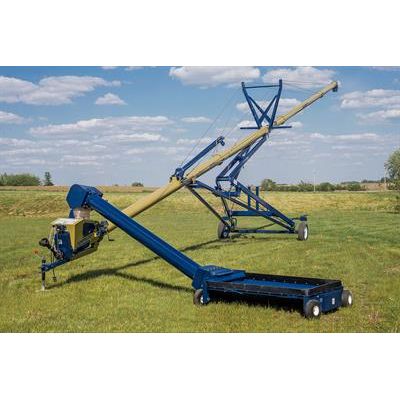

Harvest - Model H-XT Series -Grain Augers

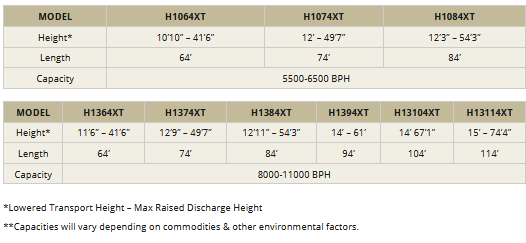

Models Available:

• H10-XT: 64’, 74’, 84’
• H13-XT: 64’, 74’, 84’, 94’, 104’, 114’

Durability:

• Double tapered bearing at discharge handles both radial & axial loads; superior to a ball bearing.
• 12ga tubing throughout entire auger is heavier than the industry standard; nearly 2x thicker than 14ga.
• 5/16” double flighting at intake, 3/16” flighting throughout remainder – 1/4” remainder on H13XT.
• Iron Edge Flighting throughout entire auger: up to 50% thicker edge.
• Triple bolted flight connection for superior reliability you can count on.
• Powder Coat Plus for superior coating & longer lasting.
• Brand new highway-rated tires & rims are standard on all of our H-XT models.

Safety:

• Hydraulic scissor-lift eliminates risk of fraying & snapping lift cables.
• Small-gap hopper grate: a safety priority without sacrificing capacity.
• Every service access requires a pin or bolt removal to decrease risk of accidents.
• Velocity check valve locks hydraulics at the sudden loss of pressure.
• Reflective tape along tube & axle increase road safety; optional axle light kit available.

Serviceability:

• Fast-access flighting port for the easiest flight removal & service.(Patent Pending)
• Double chain coupler offers longer-life & easier maintenance.
• All grease points are easy access.
• Large infeed access doors for better clean-out & serviceability.
• Constant velocity joint on driveline for extended life & less frequent greasing.
• Top overflow protection to prevent auger from plugging during standard operation.

Available Add-Ons:

• Heavy duty hopper power-mover, available in hydraulic or electric with remote control
• Hydraulic or electric hopper winch
• 3’ heavy duty bucket spout
• Road Safety Light Kit
• Right angle PTO Drive
• Reverser & 1000-540 reducer/reverser.
• Extended wear stainless steel flighting in hopper transitional & drag augers.
• Corn Screen
• Drive over Pit-Express
