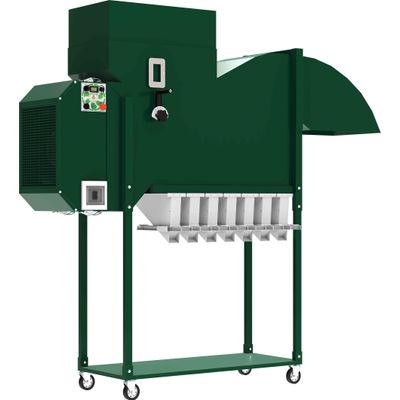

ISM Separator - Model ISM-5 -Grain Cleaner Machine

• Productivity during primary grain cleaning: Up to 5 tons per hour.
• Productivity during calibration: Up to 2.5 tons per hour.
• Electricity consumption: 0,2 – 0,55 kWh.
• Power supply: 220 V, 380 V
• Appointment: Calibration, Primary cleaning
• Type: Non-cyclone
• Length: 2150 mm
• Width: 460 mm
• Heights: 1750 mm
• Weight: 160 kg

• The lack of a vibrating tray excludes grain damage during operation.
• Does not require complicated maintenance.
• Simplicity of design and reliability of the entire machine.
• No lubrication points and replaceable components.
• Fast transition from culture to culture.
• Separation of grain mixtures.

The main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:

• Minimize airflow loss.
• Reduce energy consumption by three to four times
• Expand the functionality of the separator
• Use a frequency converter, which in turn simplifies regulation
• Increases the durability of the electric motor.
• Trays with bag holders, which the separator is equipped with, ensure that the bags are secured under the trays.
