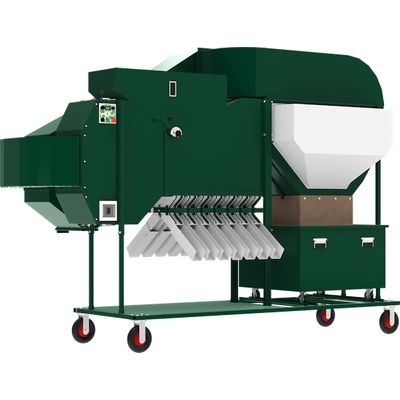

ISM Separator - Model ISM-10 CSC -Grain Cleaner Machine
ISM-10 CSC – Efficient seed cleaning and preparation for small and medium-sized farms. The ISM-10 CSC is designed for thorough seed cleaning and preparation, guaranteeing high productivity and quality processing. This machine is an ideal solution for small and medium-sized farms, where economy, versatility and equipment reliability are key. The built-in cyclone-sediment chamber allows the ISM-10 CSC to work efficiently both indoors and outdoors, providing flexibility in use. When you choose the ISM-10 CSC, you get a modern, reliable solution that allows your farm to achieve a high level of seed quality and meet the demands of modern agriculture. Warranty 24 months.
- Productivity during primary grain cleaning: up to 10 tons per hour.
- Productivity during calibration: up to 5 tons per hour.
- Electricity consumption: 0,2 – 0,75 kWh.
- Power supply: 220 V, 380 V
- Appointment: Calibration, Primary cleaning
- Type: Cyclone
- Length: 3400 mm
- Width: 1000 mm
- Heights: 2100 mm
- Weight: 420 kg
- The lack of a vibrating tray excludes grain damage during operation.
- Does not require complicated maintenance.
- Simplicity of design and reliability of the entire machine.
- No lubrication points and replaceable components.
- Fast transition from culture to culture.
- Separation of grain mixtures.
The main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:
- Minimize airflow loss.
- Reduce energy consumption by three to four times.
- Expand the functionality of the separator.
- Use a frequency converter, which in turn simplifies regulation.
- Increases the durability of the electric motor.
- Trays with bag holders, which the separator is equipped with, ensure that the bags are secured under the trays.
