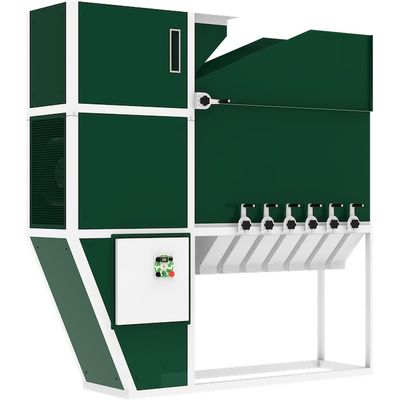

ISM Separator - Model ISM-20 - Grain Cleaner Machine
The ISM-20 separator is a versatile device designed for effective operation both indoors and outdoors, in complexes of grain cleaning and elevators. Thanks to its clever design, the ISM-20 can be integrated into an automated grain cleaning line, making it a it is an excellent choice for medium-sized farms. This reliable device combines precise operation, energy savings and ease of use. Robust design and versatility ISM-20 allow it to be used in a variety of conditions, adapting to the needs of modern farmers. ISM-20 is the ideal solution for those who need an effective and professional tool for cleaning and sorting grain. Warranty 24 months.
The main difference from other machines of this type is the use of a power unit with a
rotor. The use of a rotor in machines of this type provides a number of benefits, such
as:
- Minimize airflow loss.
- Reduce energy consumption by three to four times
- Expand the functionality of the separator
- Use a frequency converter, which in turn simplifies regulation
- Increases the durability of the electric motor.
- Trays with bag holders, which the separator is equipped with, ensure that the bags are
secured under the trays.
- The lack of a vibrating tray excludes grain damage during operation.
- Does not require complicated maintenance.
- Simplicity of design and reliability of the entire machine.
- No lubrication points and replaceable components.
- Fast transition from culture to culture.
- Separation of grain mixtures.
- Productivity during primary grain cleaning: up to 20 tons per hour.
- Productivity during calibration: up to 10 tons per hour.
- Electricity consumption: 1,5 – 3 kWh.
- Power supply: 380 V
- Appointment: Calibration, Primary cleaning
- Type: Non-cyclone
- Length: 2310 mm
- Width: 650 mm
- Heights: 2400 mm
- Weight: 355 kg
