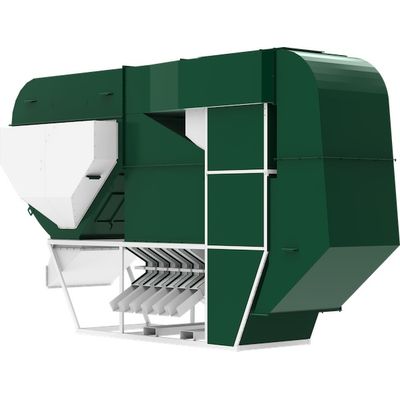

ISM Separator - Model ISM-50 CSC -Grain Cleaner Machine

Key benefits of ISM-50 CSC:

• Thorough grain cleaning: it can handle various levels of contaminants, ensuring high quality processing.
• Flexibility in use: suitable for both indoor and outdoor operation.
• Cost-effectiveness: low maintenance and operating costs.
• Simplicity and reliability: robust design and ease of operation make it a sustainable choice for farms of all sizes.
• ISM-50 CSC is a reliable and versatile separator that meets the requirements of modern agricultural enterprises, ensuring high productivity and quality work.

• Productivity during primary grain cleaning: up to 50 tons per hour.
• Productivity during calibration: up to 25 tons per hour.
• Electricity consumption: 2,2 – 7 kWh.
• Power supply: 380 V
• Appointment: Calibration, Primary cleaning
• Type: Cyclone
• Length: 4907 mm
• Width: 1574 mm
• Heights: 2864 mm
• Weight: 1100 kg

• The lack of a vibrating tray excludes grain damage during operation.
• Does not require complicated maintenance.
• Simplicity of design and reliability of the entire machine.
• No lubrication points and replaceable components.
• Fast transition from culture to culture.
• Separation of grain mixtures.

• he main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:
• Minimize airflow loss.
• Reduce energy consumption by three to four times.
• Expand the functionality of the separator.
• Use a frequency converter, which in turn simplifies regulation.
• Increases the durability of the electric motor.
• Trays with bag holders, which the separator is equipped with, ensure that the bags are secured under the trays.
