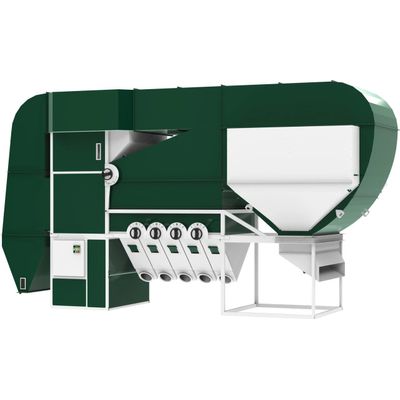

ISM Separator - Model ISM-150 CSC -Grain Cleaner Machine
ISM-150 is a high-performance grain separator, specially designed for large farms and processing plants. The unit provides efficient grain cleaning, making it indispensable in high-volume production conditions. The ISM-150 is capable of processing up to 150 tons of grain per hour, making it ideal for enterprises with intensive raw material turnover. The separator can be used both indoors and in open spaces, providing flexibility in use. The unique system effectively removes dust and light debris, guaranteeing clean grain and creating a comfortable working environment without polluting the environment. The robust construction of the ISM-150 is designed for intensive use, ensuring a long service life and reliable operation. Warranty 24 months.
The unit does not require frequent replacement of filters or screens, which significantly reduces maintenance and operating costs.
ISM-150 is a modern, efficient and reliable solution for companies that value high quality grain processing and strive for maximum efficiency.
- Productivity during primary grain cleaning: up to 150 tons per hour.
- Productivity during calibration: up to 70 tons per hour.
- Electricity consumption: 6 – 15 kWh
- Power supply: 380 V
- Appointment: Primary cleaning
- Type: Cyclone
- Length: 6382 mm
- Width: 2250 mm
- Heights: 3682 mm
- Weight: 1610 kg
- The lack of a vibrating tray excludes grain damage during operation.
- Does not require complicated maintenance.
- Simplicity of design and reliability of the entire machine.
- No lubrication points and replaceable components.
- Fast transition from culture to culture.
- Separation of grain mixtures.
The main difference from other machines of this type is the use of a power unit with a rotor. The use of a rotor in machines of this type provides a number of benefits, such as:
- Minimize airflow loss.
- Reduce energy consumption by three to four times.
- Expand the functionality of the separator.
- Use a frequency converter, which in turn simplifies regulation.
- Increases the durability of the electric motor.
- Trays with bag holders, which the separator is equipped with, ensure that the bags are secured under the trays
