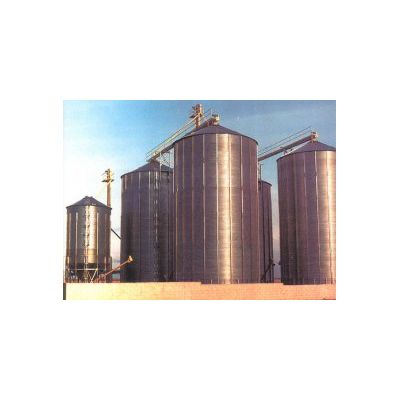

Alvan-Blanch - Grain Silos
From Grain Handling and Storage
Flat floor and Hopper bottom types. Capacities from 50 - 5000 Tonnes. Robust Construction - High grade steel.
-
Most popular related searches
Product Details
Grain Bins
- The commercial outside galvanised stiffened bins are designed for storage capacity of 830 kg/m3 (50 Lb/ ft3. The tanks arc calculated to take into consideration wind velocity pressures of 170 km/hour.
Roof
- 30° degree slope.
- Constructed in trapezoidal sections with specially formed ribs with corrugated steel between the ribs. This provides a greater degree air tightness.
- All silo roofs are self-supporting.
- Provided with manhole, ladder and filling hole.
- Optional accessories available including; roof vents, hand rails, thermometric supports, pre-lacquered steel roof, seal joints between roof and body.
Body
- Comprising galvanised sheets measuring 2,400 mm length x 1,140 width. Corrugation profile has 76 mm pitch x 14 mm depth.
- All sidewall sheets are assembled to the stiffeners by rows of bolts. Quality bolts are used of sizes 5, 6 and 8 and fitted with mastic sealant. Optional: bolts can be supplied with plastic heads.
- Double access door located at suitable level.
Stiffeners
- All bins are provided with outside galvanised stiffeners to avoid grain deposit between the sheets and stiffeners.
Optional Accessories:
- Ladders.
- Aeration Systems.
- Level indicators.
- Unloading systems.
