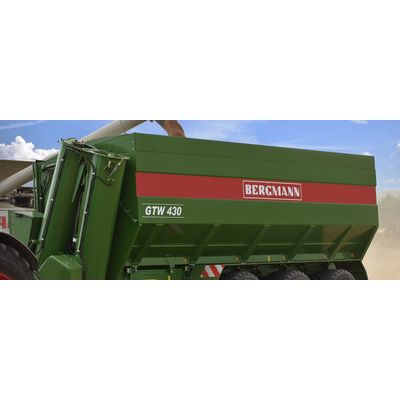

Bergmann - Model GTW 430 -Grain Transfer Trailer
Bergmann GTW 430 Chaser bin for the highest performances. Technical Data - Chassis: Tridem. Bin dimensions (L x W): 8,500 x 2,490 mm.
Most popular related searches
- Vehicle dimensions
- Length: 11,690 mm
- Width: 2,550 - 3,000 mm
- Height: 3,975 mm
- Capacity: 38,5 m³
- with body extension - optionally: 43 m³
- Laterial loading height: 3,600 mm
- Ø feeder conveyor: 500 mm
- Ø transfer conveyor: 600 mm
- Overloading height
- max.** 3,625 - 5,800 mm
- max.*** 3,150 - 5,625 mm
- Overloading width
- max.** 725 - 3,000 mm
- max.*** 1,315 - 3,325 mm
- Overloading capacity: 1,100 t/h
- Net weight*: 11,600 kg
- Gross weight:
- street: 34,000 kg
- field: 48,000 kg
* depending on equipment
** w/o unloading tube extension
*** with unloading tube extension
Measures, weights and technical data subjects to change without notice. All illustrations, dimensions and weights do not necessarily correspond to the series model and are non-binding.
