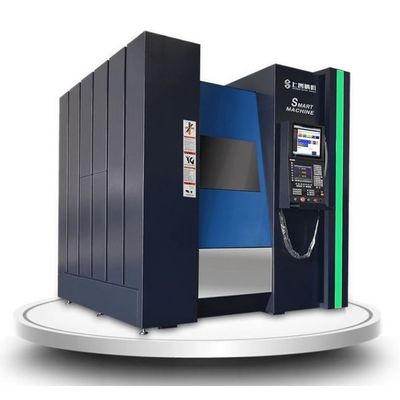

Shangshan - Model S-1100V - Graphite Milling Machine

Product features:

• Designed specifically for graphite processing.
• Fully closed-loop control to ensure accuracy.
• Fully sealed protection to protect machine tool components.
• Customizable to your needs.

Processable materials:

• graphite, carbon fiber, ceramics, composites, and other non-metallic materials.

S-1100V Parameters: Value

• X/Y/Z Travel: 1100×600×700mm
• Table Dimensions: 1200×600mm
• Max. Table Load: 800Kg
• Spindle Face to Worktable Height: 120—820mm
• Positioning Accuracy: ±0.005/300mm
• Repeatability: ±0.003/300mm
• Tool Capacity: 24
• Spindle Speed: 15000-20000Rpm
• Moving Speed: 24m-36m/min
• Cutting Speed: 10m-20m/min
• Tool Change Time: 2 seconds
• Dimensions (L/W/H): 3150×2750×3700mm
• Weight: 6000Kg
• Control Method: Fully closed-loop control
