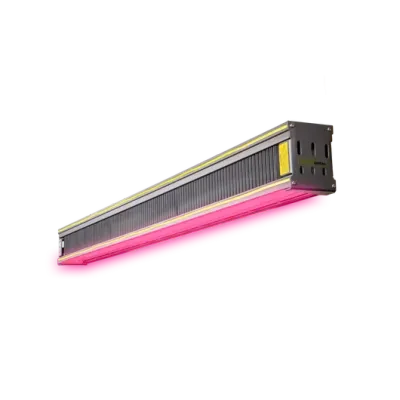

VOLT Grow - Model SKY 630R -Greenhouse LED Top Light for Supplementary Lighting
Used to provide supplemental lighting in mixed lighting grow operations. The SKY Series modular drivers allow for easy field servicing. The fixture’s narrow profile of only 2.75” in width allows it to be covertly placed under existing support structures minimizing the creation of new shadows. Its ultra-lightweight design and included hardware enables five different mounting configurations allows this light to easily adapt to every grower’s unique set-up.
The dual spectrum variant of the SKY Series focuses primarily on producing red light (650nm-750nm) and smaller amounts of blue light (400nm-450nm). This allows the 630R to be one of the single most efficient grow lights available to growers with efficacy as high as 3.6 μmol/J. The 630R is ideal for growers who need a high light intensity LED light to support the natural light they receive from the sun.
- Wattage: 630W
- PPF: Up to 2320 µmol/s
- PPE: Up to 3.6 µmol/J
- Dimming Control: 0-10V, <10-100% and Dim to Off via External Control
- Fixture IP Rating: IP66
- Driver IP Rating: IP67
- Warranty: 5 Years
- Operating Temperature: 40°C/104°F
- DLC 2.1 Listed
- UL88000 Listed
- ETL Listed
Materials
Construction: Aluminum
Mounting: 5 mounting configurations included
Dimensions: Fixture: 2.75" x 3.57" x 42.15" (5.85 lbs), Driver: 5.75" x 11" x 2" (5.4 lbs)
Photometrics
PPF: Up to 2320 µmol/s
Spectrum: Full Spectrum
Life Expectancy: >50,000 Hours
Certifications
Certifications: UL8800, ETL, DLC 2.1
Warranty: 5-Year
Electrical
Wattage: 630 Watts
Operating Voltage Range: 120-277V, 277-480V
Efficacy: Up to 3.6 µmol/J
Power Supply: Inventronics Driver
Amperage Draw: 120V: 5.35 Amps, 240V: 2.63 Amps, 277V: 2.27 Amps, 347V: 1.89 Amps, 480V: 1.36 Amps
