HAASE Drinking Trough Mod. DoppelAS ULR

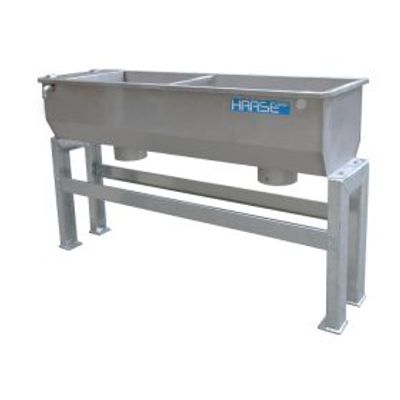

HAASE Drinking Trough Mod. DoppelAS ULR: for cattle, all stainless steel, with zinc-coated posts 400.201 (FM) or wall brackets 400.205 (WM), drinking trough with U-pipe (DLR ¾” or 1″) for connection to a circulation line, ½” float valve connection up to 2 m length: inlet 30 l/min at 3 bar flow pressure, ¾” float valve connection up to 3 m length: inlet 100 l/min at 4 bar flow pressure, with hinged cover and two large drain plugs (d = 150 mm) for quicker cleaning, float valve mounted on left (or right if desired), other lengths and dimensions on request, optional: additional heating 551.590 oF, ZAK (ball valve located in front of and behind the float valve and a drain, outlet), HAASE installation box IKL1 500.005
