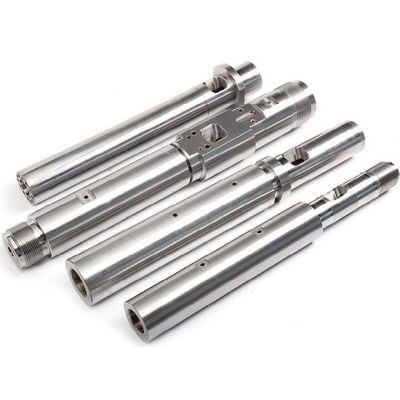

Haitian - Injection Machine Screw Barrel

SHARE

According to different ingredents and products the screw can be chosen: general type, pin type, barrier type, separation type, and gas-exhausting/vented type, etc.

Most popular related searches
sprinkler head

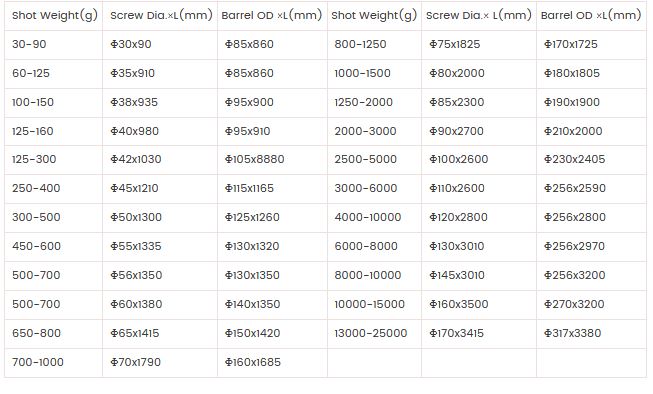

  • Screw diameter: Ф20-Ф220
  • Mould clamping force: 100KN-35000KN
  • Shot weight:30-30000G
  • Screw can be mated with different heads of screw.
  • Cyclinder can be mated with differernt sprinkler heads.
  • Technical Parameter:
  • Hardness After Hardening & Tempering:HB280-320
  • Nitrided hardness: 950-1100HV
  • Nitrided layer depth:0.50-0.80mm
  • Nitrided brittleness: ≤2 level
  • Surface roughness: Ra 0.4μm
  • Linearity of screw: 0.015mm/m
  • Bimetallic layer depth: ≥3mm
  • Bimetallic hardness: HRC60-72
  • Hard-chrome plating hardness after nitriding: ≥950HV
  • Chrome-plating layer depth: 0.025~0.10mm
