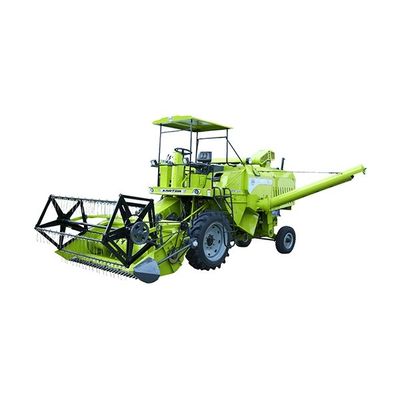

Kartar - Model 3500 W -Harvester

ENGINE

• Make: Ashok Leyland
• No. Of Cylinders: 4(Four)
• BHP Maximum: 76 @ 2200 RPM

CUTTER BAR

• Width: 2133 mm
• Height Adjustment: Hydraulically
• Cutting Height Min: 100 mm
• Cutting Height Max: 500 mm

REAL

• Type: Pick Up
• Speed Adjustment: Mechanically
• Height Adjustment: Hydraulically

CLEANING

• Type: Forced Air Cleaning
• Adjustment: Mechanically

GROUND SPEED

• 1st Gear Km/h: 1.5 to 3.5
• 2nd Gear Km/h: 3.5 to 9.0
• 3rd Gear Km/h: 8.5 to 21.9
• Reverse Gear Km/h: 3.5 to 9.0

FAN

• No. of Blades: 6(Six)
• Adjustment: Mechanically

CAPACITY

• Fuel Tank: 100 Lts.
• Grain Tank: 1.40 meter Cube
• Hyd. Oil Tank: 22 Lts.

TYRE SIZE

• Front: 12/4/28
• Rear/Trolley: 1.40 meter Cube

DIMENSIONS

• Length: 6100 mm
• Min. Ground Clearance: 2590 mm
• Height: 3050 mm
• Weight: 4600Kgs.(Approx)

WORKING CAPACITY

• Wheat :: 1.5-2.5 Acres/hour approx.
• Paddy :: 1.40 Acres/hour

Product Details :

• Number Of Cylinders: 4
• Cutter Bar Width: 2133 mm
• Fuel Tank Capacity: 100 Lts.
• Grain Tank Capacity: 1.40 meter Cube
• Weight: 4600Kgs.(Approx)
• Length: 6100 mm

NOTE : As our policy is of continuos development, Specification may change without prior notice. For further detail contact your nearest dealer.
