Cord King

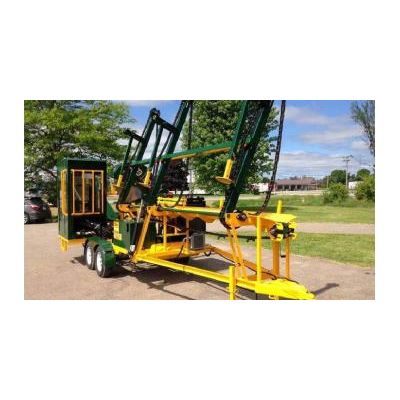

Cord King - Model CS16-30 -Heavy Duty Circular Saw Firewood Log Processors
FromCord King
34-ton splitter (required for 8-way wedge). 42-ton splitter (required for 10- or 12-way wedge). Hydraulically adjustable wedge. Quick change hydraulically adjustable box wedge 10 to 12-way split. Hydraulic Folding Log Deck. Extended infeed conveyor to 20′. Extra live deck legs, dual drive available. Trap doors for last piece assist (easy end-of-log cutting). Operator safety cage. Heated operators cab. Air conditioning (hydraulically driven or 120V plug in). 24` to 40` standalone o?oading conveyor (radial stacking). 12` or 16` integrated offloading conveyor. Overhead log grapple assist (crooked wood).
Most popular related searches
firewood log processor
firewood log
circular saw
log deck infeed conveyor
sawing log
firewood processor
hydraulic logging
log deck
log grapple
firewood
Specifications
- 50 HP Diesel Engine - Interim Tier 4
- 36” carbide tooth slasher saw
- Splitter Force 29 ton
- 6- or 8-way fixed splitting wedge
- 16` infeed with 3-leg live deck
- Hydraulic log stop adjustable 12-24" length
- Operator platform with deluxe seat
- Automatic clamping
- Fuel Capacity: 20-gallon fuel tank
- Hydraulic Reservoir Capacity: 55 US gallons
- Hydraulic Oil Cooler Standard: 35,000 BTU/hr
- 10k lbs tandem axles with electric brakes and running lights
- 2 5/16″ Ball Hitch
Performance
- Production Rate: up to 4 full cords/hr
- Cycle Time (Cut and Split): every 3.5 seconds
- Maximum Log Diameter: 16"
- Maximum Log Length: 30` (butt on the deck)
- Estimated Fuel Consumption: 1.5 GPH
- Weight: 9,000 lbs
- Transport Dimensions: 8`-0" wide, 12`-0" high
