Meper - Model MP80FS - High Barrier Multilayer EVOH/PA Agro Chemical Pesticide Bottles Extruder Blowing Mould Make Machine
MEPER extrusion blow molding machine MP80FS IML is specifically designed for making bottles from 5ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80FS IML has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80FS IML is updated to be one of the most reliable and popular model in the world.

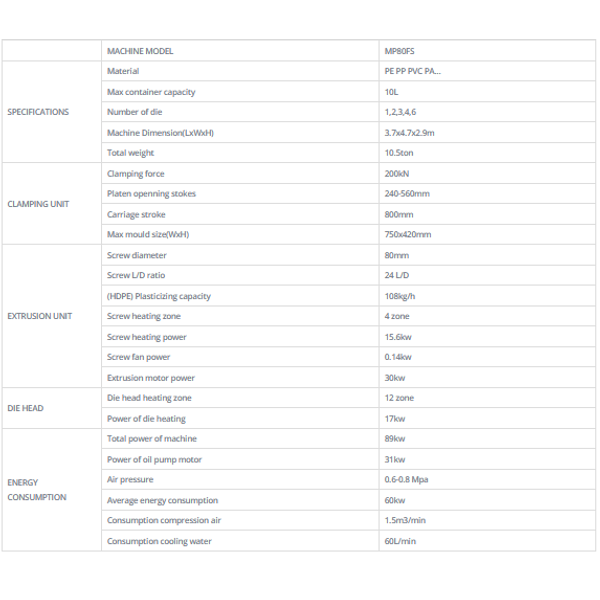

- Brand: MEPER
- Model: MP80FS
- Material: PP PE PVC PA......
- MAX container capacity: 10L
- Number of die: 1,2,3,4,6 Set
- Machine Dimension: 3.7x4.7x2.9m
- Total weight: 10.5 Ton
Introduction
MEPER extrusion blow molding machine MP80FS IML is specifically designed for making bottles from 5ml up to maximum 10L. It is hydraulic driven with accrate eletrical control system. MP80FS IML has double stations to increase the production efficiency. Also, it has variety of choice of die heads. With more than 10 years of success in the market, MP80FS IML is updated to be one of the most reliable and popular model in the world.
- Auto Lubrication
- Water Cooled Modular Blow Pin
- Hot Wire Cutting
- Positioning Hole For Quick Mold Change
- Adjustable Die head
- Linear Transducer
- FRL(Filter Regulator Lubricator) for Pneumatic
- Proportional Hydraulic System fro better control
- Swing and Adjustable Extrusion Platform
Extrusion Die Head: Highly Experienced Multi-cavity and Multi-layer Technology
Adopting with latest die head design, MEPER focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
Control System: Highly Optimized User-friendly Control Technology
All Meper Machines is Equipped in Standard with Easy Operational Techmation Control System or Optional with B&r Control System. Moog Parison Control is Also Optional Based on Different Requirements.
Clamping System: Highly Developed Tie Barless Design
MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection.
Energy Saving: High Standard of Energy Saving System
MEPER MACHINE is equipped with high standard of energy saving driving systems. All extrusion and hyraulic motors are in IE3/4 energy level. Also, servo energy saving feature can be easily applied.
