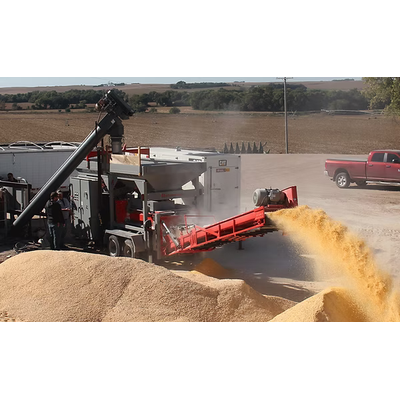

Automatic - Model ATG10000 -High Capacity Electric or PTO Roller Mill

Real World Results*

• 3 lbs of additional gain per head
• 1¢ better cost of grain = 64 lbs less feed per head
• 4.5% higher grade out on Prime/Certified Angus Beef
• 1.88% better conversion

ATG10000 Electric

• 10,000 bu/hr capacity
• 350 bushel hopper
• 24" discharge conveyor
• 2-100 HP motors
• Up to full throttle 900 RPM
• Adjustable roller spacing
• Self-Contained Hydraulics

Power Requirements

• 480 amp, 480V 3 phrase breaker
• 320 kW or 400 kVA

• Sequential electric start up/shut down
• Electric hopper grates
• Rolls:  14" hardened to 56 Rockwell C
• Quick adjust rolls
• Magnetic grates
• Designed for quick and easy serviceability
• Each basic controlled by an individual motor
• Torsion axle suspension
