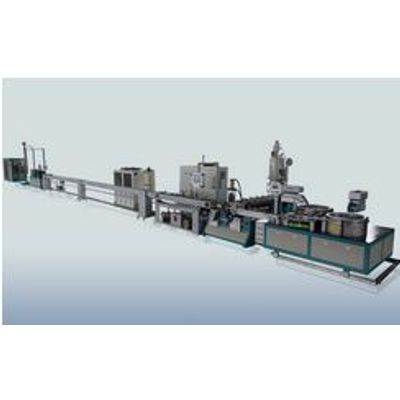

Zeanon - High Speed Flat Drip Irrigation Pipe Machine

SHARE

"ZEANON" is an independent brand developed by Qingdao Xindacheng together with European well-known drip line. Zeanon products cover all aspects of the drip irrigation field, including water-saving irrigation technology & machinery, engineering design, drip products and drip irrigation pipe machine.

Most popular related searches
drip irrigation pipe
irrigation pipe
drip irrigation
drip irrigation system
drip irrigation pipe production
flat drip irrigation pipe
dripping pipe
irrigation system
irrigation pipe production
irrigation
  1. Dripper feeder device: double sets. Dripper feeding speed: 3000pcs/min.
  2. Have dripper buffer device, make sure non-stop machinery even if happen bad quality dripper block on feeder.
  3. Extruder Servo direct drive, save power.
  4. Extruder die head & calibrating: Germany technology, thickness adjustable.
  5. Configuration: One-button automatic pipe-holding dripper insert device.
  6. Irrigation pipe accumulator: equipped with the most advanced European parallel accumulator device.
  7. Automatic drilling device: 3 units, speed: 3000times/min.
  8. Configure online automatic imaging analysis and monitoring punching system: monitor the punching status, realize the error automatic alarm function, and ensure the product punching rate.
  9. Line speed : 300m/min, it is the fastest production efficiency in the world.
    1. dripper space 100mm, speed: 200m/min.
    2. dripper space 200mm, speed: 300m/min.
    3. dripper space 300mm, speed: 300m/min.

Feature 1:

  • Zeanon irrigation pipe weights less than 7g/m,Reduce 30% material which will largely save cost.

Feature 2:

  • Configured with advanced dripper dripper buffer and insertion unite {Europe technology)
  • Insert 3000 pieces of dripper per minute.

Feature 3:

  • Advanced dripper.weights only 0.1g/pcs(China exclusive agent).
  • Qingdao Xindacheng import from Europe, China exclusive agent
  • High efficient inner irrigation pipe dripper adopted high efficient injection mold technology.
  • All produced in Europe, to make sure of the quality.

Feature 4:

  • Double Auto Punching Unit{3 unit)—leading technology in the world;
  • Punching device fixed with online monitor & picture indentify system, store the punching system;
  • Auto alarm for wrong punching, it is controlled by PLC system;
  • Tracking and adjust the punching system in time.

Feature 5:

  • Auto winder + Accumulator device
  • This is an important part of the drip irrigation pipe machine.
  • It is drive by servo motor.
  • Automatically wind the dripper irrigation pipe.
  • Controlled by PLC system.
