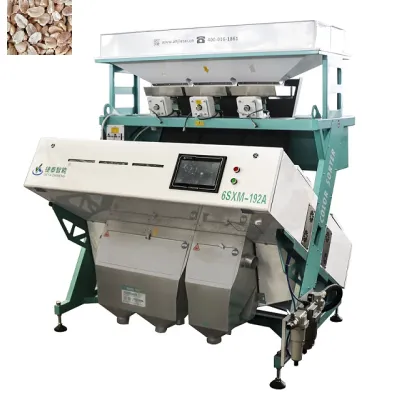

Jietai Zhineng - Model 6SXM-192A -High Speed Spectrum Tea Grain Color Sorter Machine System
The High Speed Spectrum Tea Grain Color Sorter Machine System by Jietai is a cutting-edge machine designed for precise color sorting applications in various industries. Utilizing an Internet of Things (IoT) system, it offers a highly humanized interface that enhances human-machine interaction. This system allows remote control and provides accurate data statistics and analysis with multiple color selection modes. The machine is equipped with an HD image capture system featuring full-color high-speed CCD sensors that detect areas as small as 0.04 mm², providing high resolution and reduced distortion. The multi-core parallel image processing system ensures flexible and synchronous operation, enhancing sorting accuracy to 99.99%. The intelligent solenoid valve reduces air consumption significantly while prolonging ejectors' lifespan. The innovative shadowless LED spectrum and advanced input/output systems contribute to maximizing the machine's output capacity, which ranges from 2.0 to 4.0 tons per hour. It supports a wide range of applications from grains to industrial products.Capacity(T/H): 2.0-4.0
Power: 220V/50HZ
Color: Blue-White
Condition: New
Sorting Accuracy(%): ≥99.99
Dimension(l*w*h): 1687*1515*1910mm
Function: Color Sorter,sorting Different Color Materials
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Field Installation,commissioning And Training
Type: Rice Sorting Machine
Weight: 700KGS
High Light: Tea Grain Color Sorter Machine, spectrum Grain Color Sorter Machine, Spectrum tea color sorter
IOT color sorter system
Highly humanized interface of human-machine interaction, Smart cloud interconnect, Remote control, accurate big data statistics and analysis.Call the multiple preset color selection modes at any time.
HD image capture system
Full-color high-speed CCD sensor recognizes 0.04mm²area,Nikon camera,super high resolution,ultra-sensitive ,wide vision, low distortion.
Multi-core parallel image processing system
Multi-core parallel image processing system, flexible matching and synchronous operation of color sorting/shape sorting.
Intelligent high-frequency solenoid valve
Ultra-low air consumption, ultra-low carryover ratio, intelligent detect the working status of ejectors,avoid the fault and prolong the life of ejectors.
Shadowless colorful spectrum LED
Taiwan Yiguang,shadow-less LED colorful light source, multi-angle shadow-less light path technology.
Input and Output system
Adopting a new pressure-resistant structure to feed, which greatly increases the output of the machine and ensures the stability of the machine.The straight-through discharge structure solves the problem of material blocking and stacking.
Model NO.: 6SXM-192A
Accuracy (Percent): 99.99
Optical Carryover (Bad:Good): 30:1
Capacity (T/H): 2.0-4.0
Power (kwh): 2.2
Air Pressure (Mpa): 0.6-0.8
Air Consumption (L/M): ≤1.2
Dimension(mm)(L*W*H): 1687*1515*1910
Weight (kg): 700
