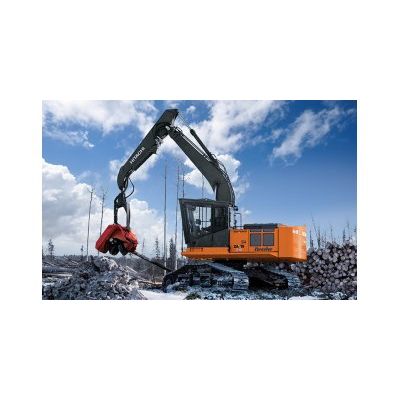

Hitachi - Model ZX210F-3 -Forester
Although the ZX210F-3 is our smallest forester, it is certainly no weakling. From its tough, next-class-up swing and travel systems, to the strengthened, rugged upper-structure and heavy-duty undercarriage, you’ll feel confident taking on any woods. Unlike retrofitted excavators patched together for logging use, Hitachi Foresters are built from the ground up in a state-of-the-art manufacturing facility specifically for forestry work. The purpose-built processing front eliminates the need for boom-tip and hoist-cylinder adapters. With the ZX210F-3 in your fleet you can count on efficiency, reliability and durability.
Most popular related searches
forester
log loader
forestry work
forestry
delimb
delimber
tree handling
harvesting system
logging delimber
forest road
Engine
- The Isuzu EPA Tier 3-certified engine features a common-rail injection system that increases engine output while lowering fuel consumption.
Durable structure and undercarriage
- Hitachi foresters feature one of the most aggressive guarding packages available. It includes heavy-duty side and upper-deck panels supported with reinforced bulkheads, guards to protect the hydraulic-oil filler cap and exhaust stack, a heavy pump door with support bracket, sealed underdecking panels and a tough three-piece purpose-built engine enclosure.
- Strong boom-tower arrangement, thick base plates, after-welding machining in critical areas and large-diameter swing bearings make the ZX210F-3 extremely durable.
- Robust structures, next-size-up components, drive systems and heavy-duty track chains deliver efficiency and durability.
- The ZX210F-3 comes standard with rock guards, belly pan, travel motor guards and log deflector.
Hydraulics
- New heavy-duty booms and arms are ready to take on all applications, whether it be building roads or processing or handling trees.
- The ZX210F-3 has the same proven hydraulic systems found in Hitachi’s construction and mining excavators.
Simple controls
- The rugged, space-saving monitor is compact but easy to read.
- The ZX210F-3 Forester represents the very best in productivity and efficiency, with highly refined, computer-chip-controlled engine/hydraulic performance.
- The side-entry cab has integral vertical bars and polycarbonate windows, meeting all safety requirements for forestry applications while maximizing visibility.
Easy to maintain
- External screening, sealed cooler compartment and optional automatic-reversing fan help eliminate the downtime associated with cooling system cleaning.
- Three-piece heavy-duty engine enclosure, new under-house protection system, new hydraulic filter guard, muffler protection and heavier right rear door all work to keep the machine’s valuable components safe from damage.rough.
- Sturdy, well-placed handrails and eruption plate are located to make access for routine service safe and easy.
- Remote-mounted engine and hydraulic oil filters and dynamic test ports help make routine maintenance a breeze.
- The cooling package is laid out side by side, with a swing-out AC condenser for easy servicing. And the standard 1048 liter (277-gallon) fuel tank allows for extended run times between fill-ups.
- Integrated in the left-side guarding, the debris management system keeps materials and debris from entering the cooling-package area to enhance your total productivity. The improved design pulls the air entering the cooling system through fine screens – filtering out particles too large to pass through.
Comfortable cab
- The durable cloth seat features a reclining back with adjustable armrests and headrest for extra comfort.
- Depending on your application, the cab comes mounted on either a 178-mm (7-inch) fixed or 1219-mm (48-inch) hydraulically tilting riser. All models have optional rear-entry cabs with integral 1219- or 1828-mm (48- or 72-inch) risers.
- An optional air-ride heated seat offers low-frequency suspension with automatic weight adjustment, variable-suspension damper, double-locking roller slide rails, seat-cushion extension and tilt and adjustable armrests.
Configurations
- Hitachi foresters are available as road builders, harvester/processors, live-heel log loaders, butt-n-top log loaders and stroke delimber carriers.
- With a hydraulic system designed specifically for Waratah heads, Hitachi Forester processors deliver top-of-the-industry performance, productivity and uptime.
