HMG-Hess - Model 11t 58/110cm -Hydraulic Log Splitter
Hydraulic log splitter with 11t splitting power for length to 58cm or 110cm. Fast, quiet and with 11t splitting power also very powerful, built according to the new standard EN 609-1 – similar construction to the HSP 9 series, but with even more powerful hydraulic system, such as quieter engine with 1400 rpm, larger pump for more liter capacity, larger Oil tank for better cooling and much more – High-quality components from well-known manufacturers – Series HSP 11K for wood lengths up to 58cm – Series HSP 11F for short and meter wood up to 110 cm length, standard with log lifter, special knife and swivel table for meter wood – Conversion kit from short to meter wood splitter can also be retrofitted later – all HMG machines are delivered fully assembled with a comprehensive function control.
- Models HSP 9K are suitable for short wood up to 58cm
- Models HSP 9F are suitable for short wood up to 58cm and meter wood up to 110cm. As standard with log lifter, special knife and swiveling table for meter wood
- With meter log splitter, a possibly required second splitting operation can effortlessly be carried out by means of special knives and swinging in of the lower swinging table
- Wood splitters with PTO connection or tractor hydraulics are equipped as standard with three-point hitch and a large oil tank 11l
- Also available with gasoline or diesel engine

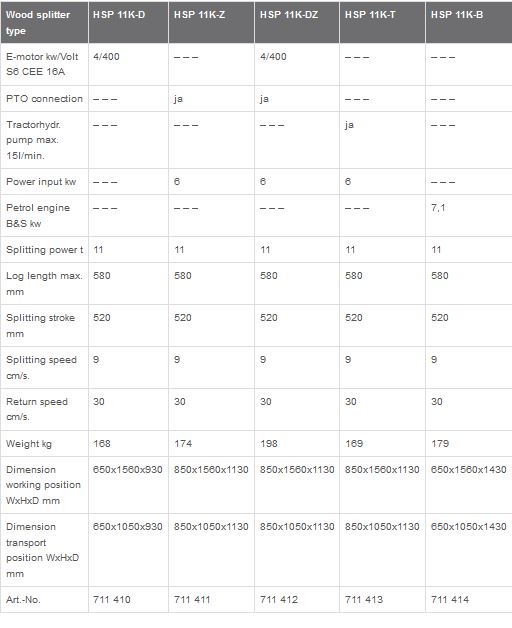

- Forward Speed 9 cm / sec
- return speed 30 cm / sec
- Power demand Tractor 6 kw
- Dimensions (WxHxD) 650x1560x930 mm Lifting retracted 1050 mm
- Robust and solid construction
- Standard with driving means
- Long splitting blade made of special steel
- Clean filtration through return filter
- Fast oil filter change
- Special arrangement of the suction pipe in the oil tank, for better oil circulation
- oil drain valve for rapid hydraulic oil change
- bell housing with rubber coupling between electric motor and hydraulic pump
- Switch-plug combination with phase inverter and motor protection
- special sliding guides between mast and frame
- variable stroke limiter for log length adjustment
- Two-hand control with sliding mechanism
- Large opening of the two-hand control
- Two-hand operation with flexible rubber wood holders to avoid entanglements with very knotty wood
- Additional drive system (for example PTO) retrofittable
