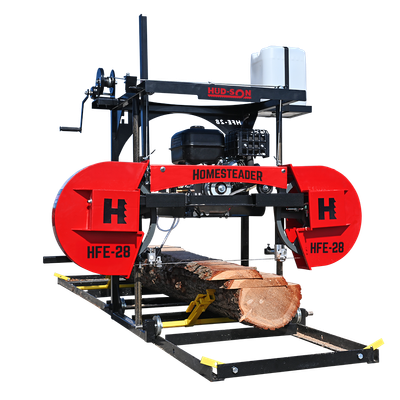

Hud-Son - Model HFE-28 -Homesteader Sawmill

Produce your own lumber for any number of construction or hobbyist projects. The HFE-28 is perfect for sawing your logs into boards or re-sawing boards to any needed dimension. This mill is pushed through the log with almost no effort. Imagine how handy it would be to just saw up a board or two right on the spot if you needed to. These economical sawmills can be easily stored when not in use. It’s lightweight and compact requiring no more than a 3’ x 7’ storage space. The blade guides are Hud-Son blade guides and provide the best blade support available. This mill has the same heavy-duty bearing system and guide system that are larger bandmills have. If your Homesteader job turns into a bit larger than planned the HFE-28 will be there for you.

CUTTING

• Max Log Capacity: 28″ Diameter
• Distance Between Guides: 24″
• Max Thickness of Cut: 9″
• Standard Track Length: 12′ / 2 – 6′ Sections
• Log Dogs: 2 Cam Style Dogs & Square Posts
• Max Log Length (with standard track) : 9′
• Blade: 132 X 1.25 X .035″
• Blade Lubrication: 5 Gallon
• Track Sweeps: No

POWER

• Engine / Motor: 14hp Gas – Manual Start
• Clutch Engagement: Centrifugal

CONSTRUCTION

• Frame: Modified 4 post
• Bandwheels: 16″
• Guide System: Dual Shoe Guides, Fixed
• Lift System: Manual Cable
• Measuring: Dual Scale 1″and 4,5,6,8 Quarter
• Main Bearings: 1.5″

WARRANTY

• 3-Year Limited Warranty: Residential Use
• 6-Year Warranty: Main Shafts and Bearings
