Stronga HookLoada - Model HL180 - Hooklift Trailer

SHARE

The HL180 model is the most popular entry point into the multi-modal world of HookLoada. With a 30% bigger payload than HL014, the 18 tonne Stronga HookLoada is the perfect solution for medium-size contractors who need extra capacity for only a small extra investment. Stronga’s classic 18 tonne HookLoada delivers reliability and performance like no other hook lift system available; leading the market with a stronger, lighter and lower design; enabling greater payload at high speed.

Most popular related searches
forestry waste
agriculture waste management
tractor
forestry management
forestry
forestry agriculture
agriculture waste

From agriculture to construction
Stronga have you covered
The HookLoada HL180 trailer continues to prove one of our most popular hook-lift trailers with huge numbers of satisfied users working hard across the globe. Clients typically extend the use of this versatile hook-lift system across a wide range of sectors from agriculture to forestry, utilities, waste management and construction.

HookLoada HL180
The perfect cross-sector hybrid
For clients with modern diversified businesses straddling different sectors and applications, the 18 tonne Stronga hook-lift system is the perfect cross-sector hybrid. Learn more about the design of the HL180 HookLoada in the video below. Email our sales team to get your hook-lift trailer quotation - sales@stronga.co.uk.

  • Gross weight Country dependent
  • Tare weight ca. 4500kg
  • Maximum hooking load 18000kg
  • Maximum tipping load 18000kg
  • Drawbar load 3500kg (4000kg)
  • Hook height Country dependent
  • Hook tower Telescopic
  • Hook stroke 1100mm
  • Sprung suspension capacity Country dependent
  • Main cylinders 2 units
  • Oil requirement 20 litres
  • Minimum draft requirement 102kW (140HP)
  • Hydraulic pressure required 200 bar
  • Total length 7580mm
  • Maximum width (standard wheels) 2550mm
  • Standard wheels 560/45 R22,5
  • Connections to tractor 3 x double acting
  • Standard Country dependent

Roller height on standard wheels – 1100mm.

  • Stable cornering profile
  • Low container loading angle

Hook container length - 4920 - 6850mm. Optimum container length - 6130mm.

  • Access to the main, standard container market

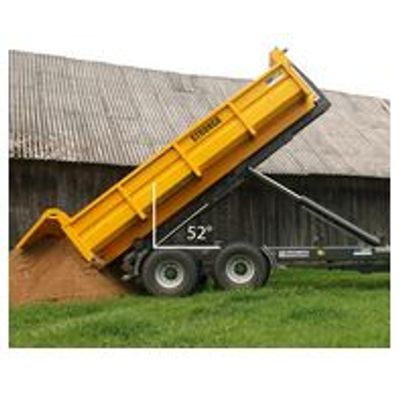

Excellent tipping angle – 52°.

  • Great heaping ability
  • Clean emptying across all materials

Length from tower to rear roller – 5370mm.

  • Compact while offering good capacity
  • Cross over to the ISO / intermodal world

  • BPW commercial 410x180 brake axles, 120×120mm square beam. 10 stud.
  • Suspensions available
    • 1. Multileaf sprung suspension >
    • 2. Parabolic sprung suspension >
  • Shockproof rubber mount drawbar.
  • Brakes available
    • 1. Air brakes on all wheels (excl. Load Sensing Valve) >
    • 2. Hydraulic brakes on all wheels >
  • 560/45 R22.5 152 D Nokian Country King TL.
  • Hydraulic container locking clamps.
  • Container locking design varies according to market.
  • Hydraulic rear axle stabilisers.
  • 3 position plate for bolting towing eyelet.
  • Swivel towing hitch. STR type. 50mm diameter eyelet.
  • Rear removable bumper.
  • 12V electric system. Sealed loom. All lights super-bright LED.
  • Cable-type hand brake.
  • Stabilising legs available
    • 1. Manual geared telescopic support leg >
    • 2. Suspended shoe type support leg >
