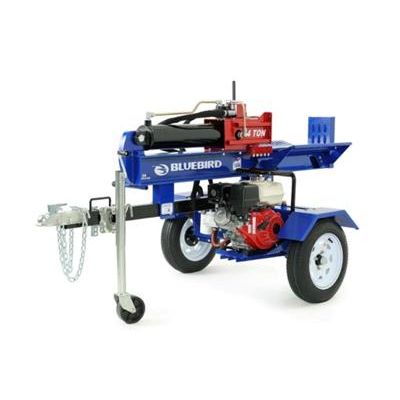

BlueBird - Model LS34H - Horizontal and Vertical Log Splitter

Engine

• Engine Options Honda GX270

Log Splitter Features

• Cylinder 5.5″ X 24″ clevis type, 2.50″ rod
• Valve 3 Position with Auto Return
• Pump 17.5 GPM HI-LO 2 Stage
• Hydraulic System 8 Gallons System Capacity
• Bed Height 33″
• Beam 6″ I-Beam with additional 0.19’’ thick top plate
• Tires 4.8″ x 12″ Highway Rated
• Log Opening 25″
• Cycle Time Appox. 12 Seconds Complete Cycle
• Splitting Force Appox. 34 tons

Dimensions

• Product size, LxWxH 93
• Weight (less fuel/water containers) 751 lbs
• Crate Dimensions L x W x H 77

Drive System

• Drive Train V-Belt to Jack Shaft, Roller Chain
• Clutch Mechanism Spring Loaded Belt Idler

Other

• Available Accessories 1 Light Kit Option
• Warranty Blue Bird Standard Engine Warranty is a 2 Year Engine Warranty for Commercial, Rental, or Residential Excluding Exceptions Indicated by an (*). *3 Year Engine Warranty for Honda Engines. *3 Year Engine Warranty for Kohler Engines. *90 Day Briggs & Stratton Engine Warranty for Commercial Use and *2 Year Briggs & Stratton Engine Warranty for Residential Use. *Hover Mowers Warranty Specific Information is as Follows – Hover Mower Model HM160 Engine *1 Year Commercial Use / *3 Year Residential Use. Hover Mower Model HM200 Engine *90 Day Commercial Use / *3 Year Residential Use.
