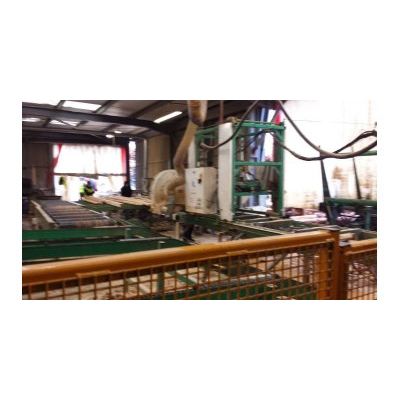

Double Cut - Model 4221 -Horizontal Bandmill
Description: Select Double Cut 4221 Horizontal Bandmill Log Deck Outfeed Deck 4016 Board Edger & Various Conveyors for Logs up to 1060mm Diameter 6.7m Max Length 350mm Max Depth of Cut
Most popular related searches
Manufacturer: Select Sawmill Company (Canada)
Bandmill Model: 4221 (75HP)
Max Cutting Height: 350mm
Min Cutting Height: 25mm from Bed
Pulley Dia: 900mm (36")
Setting System: 12 preset thicknesses
Hydraulics Log Turner 2 x Back Posts, 2 x Dogs Blade Tensioner, Blade Guide Head Lift, Carriage Feed
Max Log Dia: 1060mm (42")
Max Log Length: 6.7m (22ft)
Board Edger: 4016 (30HP) 2 Blade Telescopic
Max Cutting Dimensions 100mm(4") x 1010mm(40")
Various Roller Conveyors: Included
