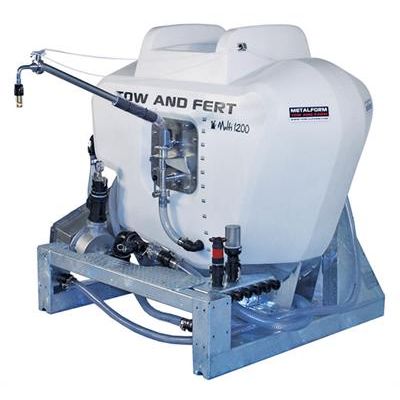

Tow and Fert - Model Multi 1200 -Horticultural Fertiliser Sprayers
The Multi 1200 is ideal for applying fine particle lime and trace elements accurately to your tree crops.
With a 1200 litre capacity this machine can hold 1.5 tonne of dry fine particle product in suspension. The Multi 1200 Hort model features 2 nozzles, with an adjustable spray width from drip line to drip line of the trees. Using the optional on-board crane and being able to dump product directly out of a bulk bags, makes it very fast to load and operate. The agitation system features a patented housed impellor which ensures product can never settle out of suspension. Using just 1 pair of auxiliary tractor hydraulics, the Multi 1200 is simple and hassle-free. The agitation and pump for spraying is driven off the same drive mechanism, so they always run concurrently. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be done in the field. .
- tank volume 1200 litres (320 gallons)
- tree centres from 7 to 10 metres
- attachment style 3 Point Linkage, Trailed
- attachment vehicle 110hp tractor or greater
- agitation powered by Hydraulics – 55litres/min
- area per load approx. 6-12 hectares (15 – 30 acres)
- pump model Metalform Stainless 3” Centrifugal Trash Pump
- pump performance 1300litres per minute at 0 metres lift. Max lift = 4 metres
- pump powered by Hydraulics – 55litres/min
- dry weight 650kg
- full weight 2,200kg
- size 1.65m (L) x 2.00m (W) x 1.70m (H)
