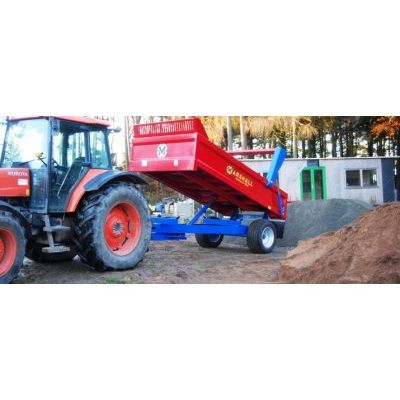

Marshall - Model HD/6 - Hybrid Dumper Trailers

It has a 6mm floor and 5mm sides, which provide an extremely robust body that can cope with carrying rocks and other heavy loads that could potential damage a lighter trailer. The body of the trailer is formed from heavy-duty pressed steel sheets reinforced with a generous number of bearers that further enhances the strength of the body. The HD/6 comes with a tapered rear-end as standard and elevated tipping point, providing the dual benefits of easy loading and the heaping of loads when discharged.

The chassis on this model uses our tried and tested design perfected over 60 years of trailer manufacturing, providing excellent strength and stability. The HD/6 also has a high tipping angle of 55 degrees guaranteeing loads are safely and efficiently discharged. On top of this all our dumpers are fitted with lights and hydraulic brakes as standard ensuring that they meet all health and safety regulations.

This impressive standard specification and build, combined with the HD/6’s compact design means it is an effective dump trailer, that can also handle a huge variety of other tasks.

Features at a Glance

• A 55° tip angle (ensures safe and efficient discharge of any load)
• Elevated rear tipping point allows loads to be easily heaped up
• Optional hydraulic door that can be ordered from new or "dealer fitted" at a later date without any paint rectification or fabrication
• Fully integrated rear lights positioned to avoid damage from the discharging load
• 6mm rock floor and 5mm sides limit the potential damage to the body
• Genuine Marshall Spares – a full collection of spares are available for all models in the range

• HD Stone Guard – The HD range comes with a standard stone guard at the front to help protect the tractor operator and the tractor itself from debris.It is formed by our CNC machines and is bolt-on allowing it to be replaced if it is damaged or completely removed for better visibility.
• HD Lighting Arrangement – Every model in the HD range has lights as standard and uses the sealed wiring system fitted to all Marshall products, preventing water damage and allowing the light units to be easily replaced if damaged. In addition the lights are recessed into the back rails and guarded to make them as safe as possible.
• HD Range: Rubble & Stone – The floor on the HD/6 model is 6mm thick, with the rest of the range benefiting from an 8mm rock floor. The HD/6 and HD/8 models have 5mm sides, with larger models being fitted with 6mm sides. The pressed design of the body further adds to the overall strength and rigidity; ensuring each model can handle rubble, stone or any other heavy material. In addition each model has been designed with a very generous cubic capacity to ensure that the stated loads can actually be carried.
• HD Range: Muck – The large cubic capacities and robust build makes the hybrid dumper range ideal for carrying muck. The elevated rear tipping points and high tipping angle allows the load to be heaped up when discharged.
• HD Hydraulic Door Design – The entire HD range benefits from the option of a hydraulic door to compliment the standard scow-end and increase carrying capacity. The hydraulic door option can also be “dealer fitted” to every model, allowing the trailers to be upgraded in the future.
• HD Tipping Mechanism – The tipping mechanism is also very robust; with the HD/12 model upwards utilising chrome rams to prevent corrosion and premature seal failures. In addition the tipping points on larger models are formed by 50mm steel pins.
• HD Suspension – Our tandem axle models all come as standard with split-oscillating suspension, which eliminates lateral movement. This combined with a wide chassis and wide spaced rams ensures maximum stability when tipping.
• Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
• Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
• Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
