Condon - Hybrid Flex Livestock Cubicles

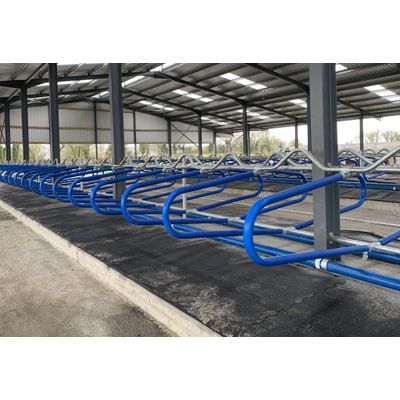

We’ve used our 40 years of design experience to develop the optimum cow cubicle. The Hybrid Flex Cubicle combines the flexibility of plastic and the stability of a steel structure. Our unique combination delivers maximum comfort for the cow while ensuring that the adjacent spaces are not encroached upon.
Most popular related searches
cubicle housing
veterinary costs
cow cubicle
cubicle bedding
milk yield
livestock cubicle
veterinary
milking
livestock
- The Hybrid Flex Cubicle provides the perfect amount flexibility, whilst also ensuring the animal remains within the cubicle bed.
- We bend the Plastic Pipe 180 Degrees at the end. This provides the optimum level of flexibility, whilst maintaining the fundamental strength of the cubicle.
- Heavy-Wall Robust Plastic Pipe reduces bruising on the animal and allows for the animals movement when entering and leaving the bed.
- Our Zig-Zag Rail design increases the height of the headrail, which also gives each animal more space. This encourages the cow to stand straight before lying down, thus optimising their comfort.
- The Hybrid flex Cubicles are easier on the animals, which helps to reduce healthcare and veterinary costs, as well as cow mortality rates.
- They are more spacious, encouraging cows to lie down quicker and for longer. This increases the animals’ resting time, which leads to higher milk production.
- The Hybrid Flex Cubicle incorporates our latest ‘easy fit’ design. Our innovative mounting system uses fewer posts, which also helps to speed up the installation process.
- By using the Steel Structure of the Adjustable Cantilever Cubicle, the spacing of the cubicle may be adjusted easily. This system also provides added stability to the cubicle.
- All clamps are heavy duty 5mm pressed steel. All bolts are hot dip galvanised and complete with lock nuts.
- Cubicle Plastic: 75mm x 12.5mm PPR Pipe
- Mounting Post: 76mm x 3.65mm located every 8ft-9ft
- Cubicle Support Rails: 60mm x 3.25mm CHS
- Zig-Zag Headrail: 48mm x 2.5mm CHS
