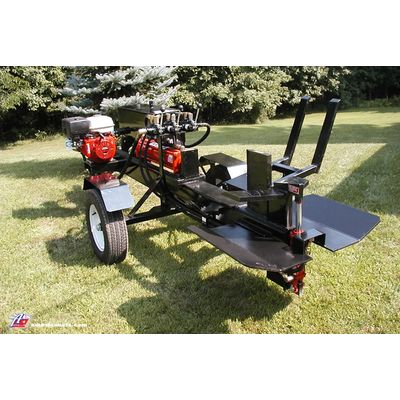

Model AM-26HW - Hydraulic 4-Way Log Splitter
Our AM26HW-1322H combines a standard 12″ Tall Splitting Wedge with adjustable hydraulic wings. These wings can be lowered out of site or used to create a 4-Way Splitting wedge. When the wings are out of site, this machine can tackle the nasty wood with the full force of the 5″ Diameter Cylinder and 22 GPM 2-Stage Pump. This machine comes standard with 3/8″ Thick Pans. The only option left is either an Electric Start 390GX Engine and/or Hydraulic Log lift.
Most popular related searches
- Honda 390 GX Engine (13 HP)
- 5″ X 24″ X 2″ Hydraulic Cylinder
- 22 GPM 2-Stage Pump
- Oversized Heavy Duty Frame
- 12″ Wedge
- Adjustable Hydraulic 4-Way
- Cradles
- Pans for Reverse Hitch Orientation
- Safety Chains
- 2″ Hitch
- 13″ Highway Tires
- Steel Fenders
- Hydraulic Log Lift with Log Cradle
- Honda 390 GX Engine ELECTRIC START
- Working Height: 25″
- Cycle Time: 9.8 Sec.
- Cylinder: 24″ X 5″ X 2″
- Wedge Height: 12″
- Highway Tires: 13″
- Fully Assembled Machine (LxWxH): 140″ X 46″ X 45″
- Weight: 1500 lbs.
- Safety Chains: Standard
- Coupler For Towing: 2″
- Finish: Powder Coat
- Maximumn Log Opening: 26″
- Hydraulic System – Oil Included: Yes
- Engine: Honda 390GX
