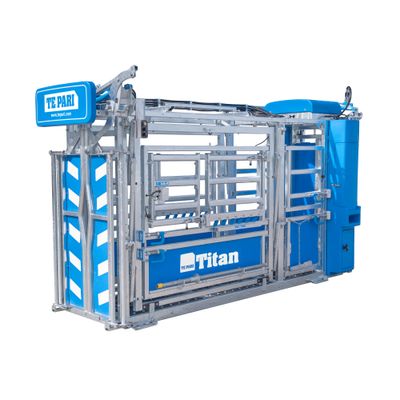

Titan - Hydraulic Cattle Crush

The Titan Range has Pneumatic or Hydraulic power to take cattle handling to a new level. The Titan hot-dip galvanised steel frame is robust enough to deal with any animal you put up against it. Combined with powered operation, the Titan ensures optimal safety for the operator and the animal and in turn improves labour efficiency, ease of animal id and stock management. But what sets the Titan range apart from any other cattle crush on the market is its suite of innovative features to suit the demands of any large operation.

Parallel Squeeze

The Te Pari Squeeze System moves the side gates together to reduce the animal compartment from 750mm to 410mm and is operated with an easy-to-use powered lever. The Squeeze System moves the gates upwards on a vertical linkage helping provide support to the animal – ideal for calving. This system is excellent for weighing young stock as it helps prevent them turning around. The Squeeze System is also ideal for larger animals when calving or undertaking breeding procedures as it prevents unwanted animal movement.

Side Access Gates

The Titan is available with 2 or 3 piece side gates. The 3 piece side gate shown here, has 5 different ways to open for excellent access to the whole animal inside. The side can be opened as 1 whole piece for sorting, the bottom sheeted section of the gate can be opened for mothering on a calf or checking feet. The top half of the gate can be opened in 1 piece or 2 pieces depending on the animal access required.

The Titan Crush is available with either Pneumatic or Hydraulic Powered Controls. Only the Hydraulic option has the rear control console which provides a convenient place to mount your scale indicator as well as having a lockable storage cupboard below.

Titan PX Crush

Pneumatic Powered with Manual Lever Control
The New Titan PX cattle crush was developed for large beef/dairy producers and stud stock operations wanting an affordable powered crush with finger tip control to make processing large numbers of cattle easier.

Pneumatic rams open and close the rear entry gate, the headbail and parallel squeeze. With proportional control over the headbail and parallel squeeze, handling cattle big or small is no trouble at all.

Titan HY Crush

Hydraulic Powered with Manual Lever Control
Hydraulic control is the ultimate in terms of all round performance of your cattle crush, producing a ‘vice-like’ grip and being virtually silent when operating. The Titan HY features hydraulic control of the headbail, sliding gate and parallel squeeze with the option to add additional hydraulic functions such as chin lifters, and drafting gates. 12 metres of hosing ensures the power pack can be located away from the crush to reduce noise. Each valve has a separate pressure relief system for animal safety. The Titan HY is at the top of the class as a standout performer.

There are a wide range of optional accessories available including Sternum Bar, Head Scoop, Quikdose Backline Applicator and Baulk Gate.
