Precimet - Model WHE-471 -Hydraulic Cultivation Trolleys

Improved reliability, durability of the trolley

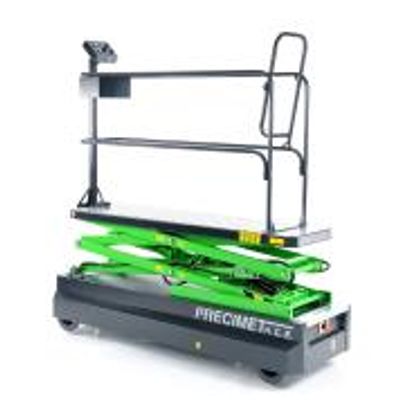

A very stabile mobile pipe rail trolley for crop care & cultivation in modern & professional greenhouses with electric drive 24V DC/70A, 2 scissors hydraulic mechanism for lifting 3m high, 4 wheels for maneuvouring lifted by hydraulic mechanism, full traction battery (life time ~1200 charging cycles = 6-8 years of usage, or even more!)

Platform:

• wide entrance at the back side of the trolley
• very easy acces on the working platform
• safe entrance and safety railings
• solid operating switches and battery indicator
• strong and unbreakable speed regulator
• toolbox build-in
• rounded edges so that no plant damages

Hydraulic scissors:

• very stable double hydraulic scissors
• powered by 2 hydraulic cilinders (new design = improved reliability!)
• high speed up and down
• minimum height 580 mm
• maximum height 2980 mm
• soft start and stop function
• long life of the electric motor, valves and relay (soft start & stop function

• Power supply: 24V DC
• Batteries: 2x12V, 110Ah
• Gear motor: 24V DC, 500W
• Trolley dimensions: 1800/CC + 160/1700
• Trolley weight: 360 kg
• Min. platform height: 570 mm
• Max. platform height: 2920 mm
• Max. load on the platform: 110 kg (1 osoba)
• Work platform dimensions: 465x1700 mm
• Drive speed: maks. 1,0 m/s

• Continuous adjustment of work platform height
• Stepless drive speed adjustment
• Smooth start and stop of the trolley
• Platform overload protection system
• Drive unit overload protection system
• Thermal protection of electronic systems
• Battery charge indicator
• Clear LCD display
• Emergency STOP buttons
• Emergency work platform lowering system
• Drive control via a control pad or a pedal switch
