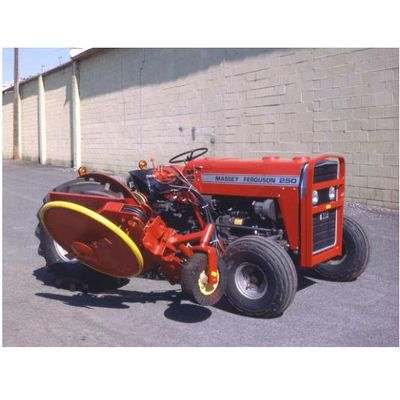

Edwards - Model DYNA TRIM DT5420 Series - Hydraulic Driven Mid Mounted Low Profile Mower

The Edwards Model DT5420 Dyna Trim is a hydraulic driven, mid mounted, low profile mower designed for trimming around trees, posts, sprinkler risers, or other obstacles. The mid mount position permits combining the Dyna Trim with any three point mounted or trailing mower of sufficient width to overlap the mowed area of the Dyna Trim. The 31 inch blade cuts 2 inches inside the outer protective tire. The Dyna Trim moves around obstacles either by contact or with hydraulic power as the operator chooses to meet conditions.

• Works with tractor hydraulic system 8 to 12 gpm flow capacity.
• Gauge wheel is adjustable to main- tain proper mowing height.
• Hydraulic cylinder controls angle of cut from 15 degrees down to 15 de- grees up for hillside terraces and raises the unit to transport position,
• Large shield protects operator.
• Manual control protects small trees and irrigation risers
