Baselier

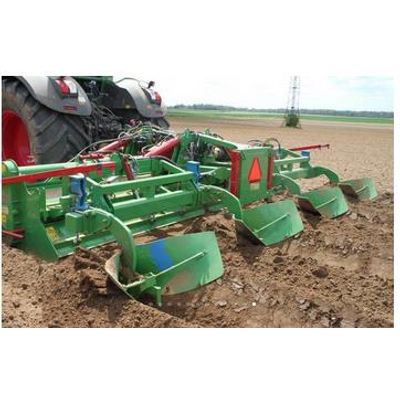

Baselier - Model HFD-FK - HFD-FKV - Hydraulic Folding Cultivator
FromBaselier
Hydraulic Folding Cultivator is designed for: Cultivate of beds before planting or sowing. Cultivate of grass-land and other stubbles.
Most popular related searches
folding cultivator
cultivator
tine mounted
soil cultivation
tine
tractor
bedding plant
plant cultivation
cultivated land
sowing
HFD-FK
- 2 frames hydraulic folding in the middle with 4 cylinders, 2 hydraulic hoses
- PTO shafts P700 with auto-reset clutch, tractor side 1 3/4′ – 20 splines
- Gearbox 450 HP – 1000 RPM, 3-point connection Cat III
- Ridging hood with parallelogram 1xL + 1xR and crumbler tines
- Welded hook tines, tine clamps mounted on rotor shaft Ø 75 cm
- LED lighting set for transport on public road
- Transport width on the road 3 metre
- 4 steel wheels D500x180 with spindle adjustment 200×100
- Rubber plate on top rotor shaft without inspection cover 2018
- 2 frame hydraulic folding in the middle with 4 cylinders, 2 hydraulic hoses
- PTO shafts P700 with auto-reset clutch, tractor side 1 3/4′ – 20 splines
- Gearbox 450 HP, 1000 RPM, 3-point connection Cat III
- 2 full width plates 1xL+1xR adjustable with spring pressure
- Welded hook tines, tine clamp mounted on rotor shaft Ø 75 cm
- LED lighting set for transport on public road
- Transport width on the road 3 metre
- 4 steel wheels D500x180 with spindle adjustment 200×100
- Rubber plate on top rotor shaft without inspection cover 2018
