Delecroix - Hydraulic Harvesting Belt

This model has a useful length from 6 to 12 meters and folds inside the trailer. The belt is equipped with a modular mesh band to guarantee the quality of the harvested product.

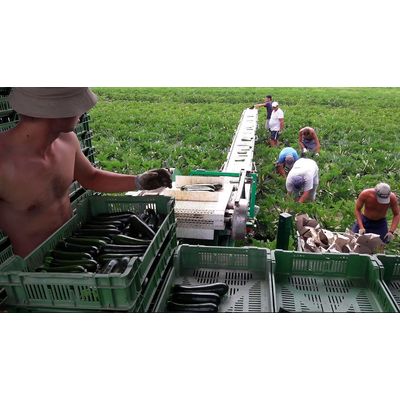

The Delecroix harvesting belt is the most versatile harvesting solution we offer. It will allow you to gain in productivity while improving the working conditions of the harvesters.

At Delecroix, our motto is to be able to offer you the solution that best suits your needs. This is why our harvesting belt is modular, adjusted to your working method.

• Folding carpet inside the trailer by hydraulic cylinders 0.75m cap
• Overall width: 480 mm
• Starting frame in folded and profiled sheet metal
• Monocoque aluminum housings
• Sliding trolley for working height adjustment
• Driven by 4 double-tooth nylon sprockets
• 400 mm wide industrial polypropylene belt
• Cleats 75 mm high, 380 mm pitch
• Hydraulic motorization
• Speed variator on distributor
• Hydraulic sliding of the mat out of the trailer
• Stopping of the conveyor by photo-electric detector

• Packing table 3 boxes facing the packer
• Surcharge for packing table 4 cases
• Special packing table with 3 dual position boxes: facing the packer and perpendicular
• Option "cap 1 m" included in the price because mandatory for the perpendicular position
• Supplement for adding rolls on table 3 boxes
• Supplement for adding rolls on table 4 boxes
• Hydraulic movement of the belt with rollers in the outer rail
• Hydraulic movement of the carpet with rollers on the trailer edge
• Raised crossing trolley for passing over pallets
• (rollers in outer rail)
• Supplement for a cap of 1.00 m length
• Supplement for a 1.50 m long cap
• Chassis extension (no central rail)
• Polypropylene belt with cleats every 300 mm. Price per meter
• Polypropylene belt with cleats every 250 mm. Price per meter
• Polypropylene belt with cleats at 250 mm pitch with height H75/50/50
• Price per meter
• Added containment edges. Price supplement per meter
• Hydro-electric reel 12 conductors 9.50 m long
• Hydro-electric reel 12 conductors 12.50 m long
• Roller support kit with hydraulic block and flexible passage through the central rail
• Reel support kit with hydraulic block
• Reel on top of the front panel and flexible passage through the roof with mast on the belt frame
• (option for passing the belt over the pallets)
• Double hydraulic hose: price per meter
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 6.00 m model
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 7.00 m model
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 8 m model
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 9 m model
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 10 m model
• Storage kit for empty boxes above the carpet,
• and solid boxes on the side - For 11 m model
• Storage kit for empty boxes above the carpet,
• and full boxes on the side - For 12 m model
• Perpendicular conveyor belt 2 m and packing table 1.50 m in the direction of the trailer
• Perpendicular conveyor belt 3 m and packing table 2.50 m in the direction of the trailer
• Perpendicular conveyor belt 4 m and packing table 3.50 m in the direction of the trailer

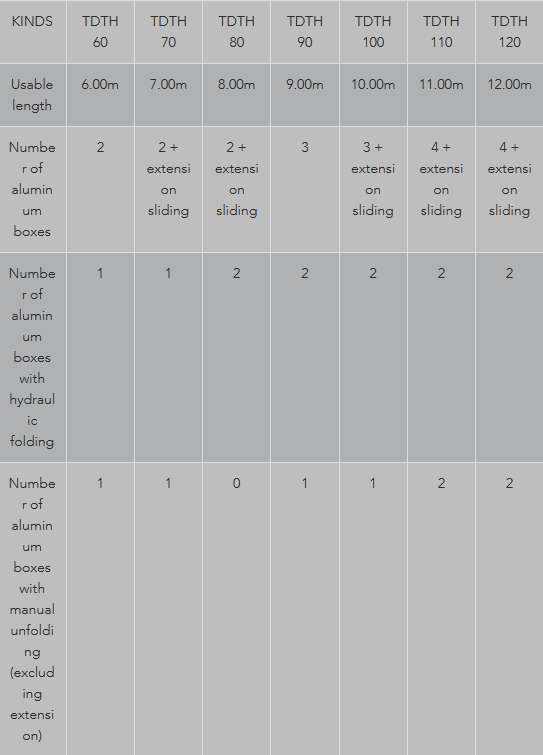

• TDTH 60 and 70: 2nd ALU box with hydraulic unfolding
• TDTH 90 and 100: 3rd ALU box with hydraulic unfolding
• TDTH 110 and 120: 3rd ALU box with hydraulic unfolding
• Finishing galvanized steel parts (in progress 2021)
• Automatic working height corrector with use of the cylinders of the 1st aluminum box (Inclinometer + Hydraulic block + Servo)
• Step
• Nitrogen cylinders last box (TDTH 90)
