Delecroix - Hydraulic Harvesting Belt on Mounted Platform

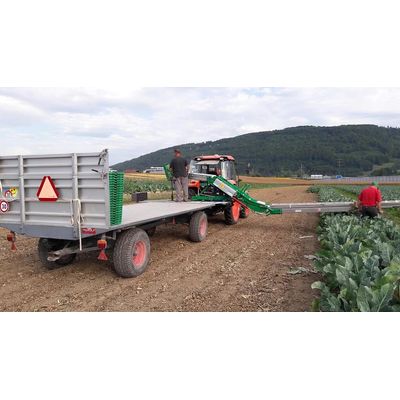

The Delecroix hydraulic harvesting belt on a carried platform is designed for multi-vegetable harvesting on small plots or in greenhouses. It will allow you to harvest cabbage, zucchini, broccoli, butternut, lettuce and other vegetables...

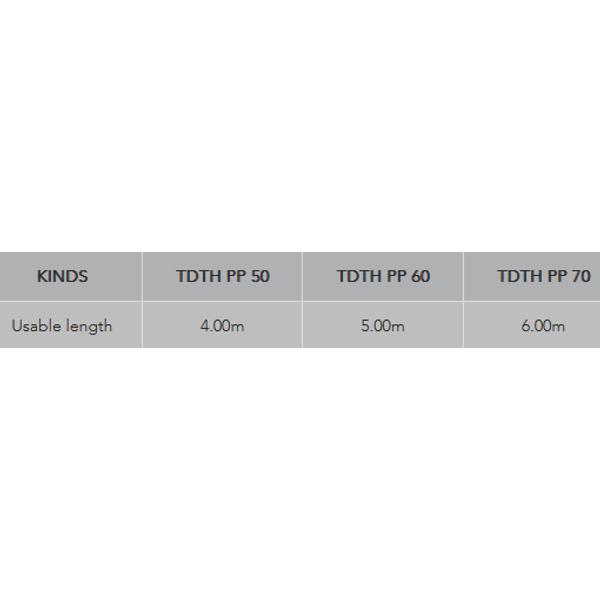

This model has a useful length from 4 to 7 meters and folds on the platform. (adapted to the road gauge, i.e. a length of less than 2.50 meters wide, including the platform). The belt is equipped with a modular mesh band to guarantee the quality of the harvested product.
The Delecroix hydraulic harvesting belt on a carried platform is the most agile harvesting solution that we offer. It will allow you to gain in productivity while improving the working conditions of the harvesters.
At Delecroix, our motto is to be able to offer you the solution that best suits your needs. This is why we offer a range of options to best fit your working method.
- Cap (landing area) 0.75m
- Overall width: 480 mm
- Starting frame in folded and profiled sheet metal
- Monocoque aluminum boxes.
- Sliding carriage under the iron box to adjust the working height
- Driven by 4 double-tooth nylon sprockets
- 400 mm wide industrial polypropylene belt
- Cleats 75 mm high, 380 mm pitch
- Hydraulic motorization
- Speed variator on distributor
- Supply by hydraulic hoses (not standard rate)
- Stopping of the conveyor by photo-electric detector
- Hydraulic side hatch with associated guardrail with manual platform add-on
- Carpet option: 2nd hydraulic box
- Transition to semi-mounted: Welded frame construction and reinforced legs under platform and its two agar wheels
- Packing table 3 boxes facing the packer
- Fork passage for lifting the platform via telescopic
- 7 pin socket
- Oil intake at the rear of the platform for platform connection & hydraulic brakes
