Otech - Hydraulic Pivot

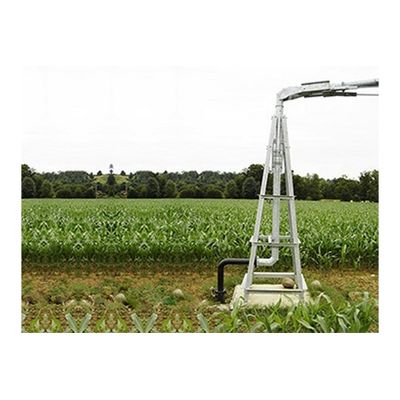

Compact pyramidal structure in galvanized steel with two belts on each side in 4 mm thick pipe, this structure reduces the volume of concrete slab to preserve more cultivated surface. Sealing by rotating connection on vertical pipe provided by lip seal at low pressures. Device without need of electricity, one span maximum in ST127 length 56 m or 62 m with an overhang of 24 m or 30 m. Flow rate to be respected from 33 m3/h to 80 m3/h and pressure from 4.3 bar to 6 bar.
